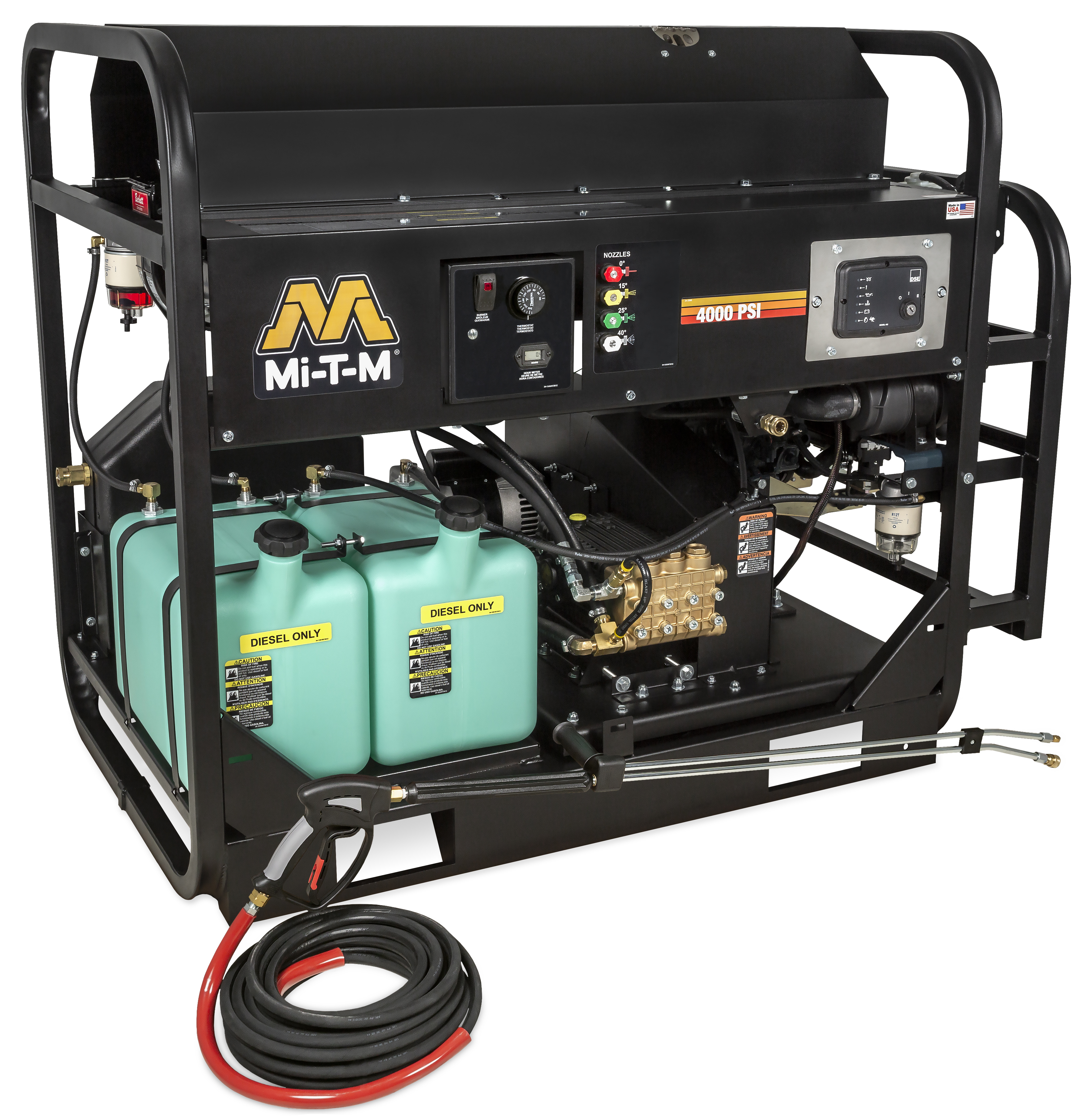

HS Series Diesel Belt Drive - HS-4005-0MDK

Get Started

HS-4005-0MDK

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start - sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader.

Specifications

PSI

4000
GPM

4.5
Horsepower/Engine

16.8 HP Kubota Z602 OHV
Pump

General
Engine Fuel Tank Capacity

10.0 gallon
Burner Fuel Tank Capacity

10.0 gallon
Burner Fuel Cons.

3.37 gph
BTU Per Hour

471,800

Weights & Dimensions

Net Weight

836.00 lbs.
Shipping Weight

940.00 lbs.
Length

56.50 in.
Width

34.00 in.
Height

46.00 in.

Options - must be ordered with unit and cannot be added later.

HX-0130 Three-way Ball Valve

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
HX-0142 Steam Combination 250°F

Increases outlet temperature to 250°F
HX-0145 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86°F-248°F
HX-0146 Hour Meter

Displays the number of hours unit has been in operation
HX-0147 Four Point Lifting Capability

Allows unit to be lifted by crane
HX-0148 Adjustable Detergent Valve

Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**
HX-0285 30-Gallon Diesel Fuel Tank

Supplies fuel to engine and burner

Warranty Information

3 Year Coil
3 Year Kubota Engine
7 Year General Pump
