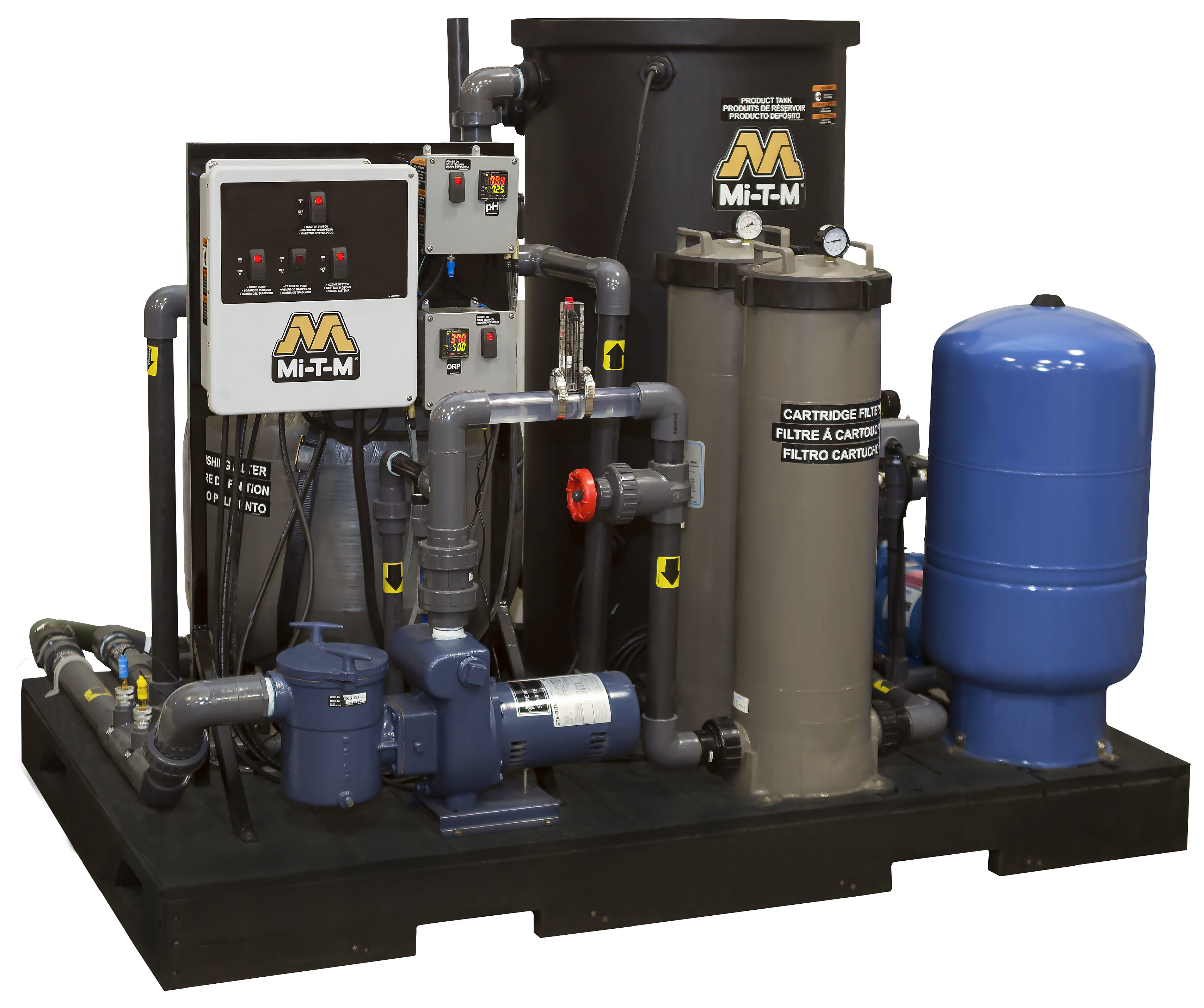

WTR

The compact WTR Series systems are great for small wash bay set-ups. They are a cost-effective solution to filter wash water for reuse through a pressure washer or for proper disposal.

Features
·Poly skid is non-corrosive
·Easily accessible pumps
·Cartridge filter, 30-micron
·Activated carbon filter
·1.0 HP surface-mount sump pump
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

Models Available
WTR-10-0M10 – 208-230V, 1Ø, 15.0A
WTR-10-0M30 – 208-230V, 3Ø, 8.0A

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-10 GPM
Cartridge Filters

(2) 30-micron, 100 sq. ft.
Carbon Filter

110 lb.
Filter Pump

1.0 HP
Transfer Pump

1/2 HP
Product Tank

80 gallon
Pressure Tank

20 gallon

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

750.00 lbs.
Length

72.00 in.
Width

48.00 in.
Height

60.00 in.

Options - must be ordered with unit and cannot be added later.

WX-0130 pH Controller

For when pH adjustment is needed; 1.0A 48ml/minute chemical pump
WX-0131 ORP Controller

For when ORP adjustment is needed; 1.0A 48ml/minute chemical pump
WX-0132 460V Option

Upgrades 208-230V model to operate at 460V
WX-0145 pH and ORP Controller

For when both pH and ORP adjustment is needed; 1.0A, 48 ml/minute chemical pump
