ePowerStation - EPS-0607-0VF3M

Get Started

EPS-0607-0VF3M

Say goodbye to fuel, fumes and noise. The ePowerStation™ is a large capacity, environmentally responsible, user-friendly power solution. Take it anywhere power is needed.

Vanguard™ Battery Technology
Lithium-Ion battery with nickel manganese cobalt (NMC) cells · Ability to charge and discharge simultaneously · Batteries are serviced and fully recyclable through an authorized Vanguard battery service center

Frame
Powder coated steel frame · 13-inch flat-free tires with locking tire brake

Digital Display
Home screen displays available power levels and estimated run time · Diagnostic screen shows battery status, charger performance and alerts · Run time screen provides applied load, state of charge and projected run time · Built-in calculator estimates run time based on load and battery level

Components
Security lock with key locks the EBOX to the unit · Charger is rated at 3000-watts · 120V charging cord · Water resistant battery and charger · Inverter is rated at 6000-watts

EBOX Receptacle (Available as an option)
Four boxes available with multiple receptacle configurations for easy customization · Handle and cord holder · Quick connect wiring plug for easy installation

Battery Safety/Certifications
·Integrated BMS monitors individual cell voltage, current, resistance and temperature
·UL 1642 Cell Safety Certification
·UL/IEC Pack Performance
·REACH and Battery Directive (2006/66/EC) Environmental Compliance

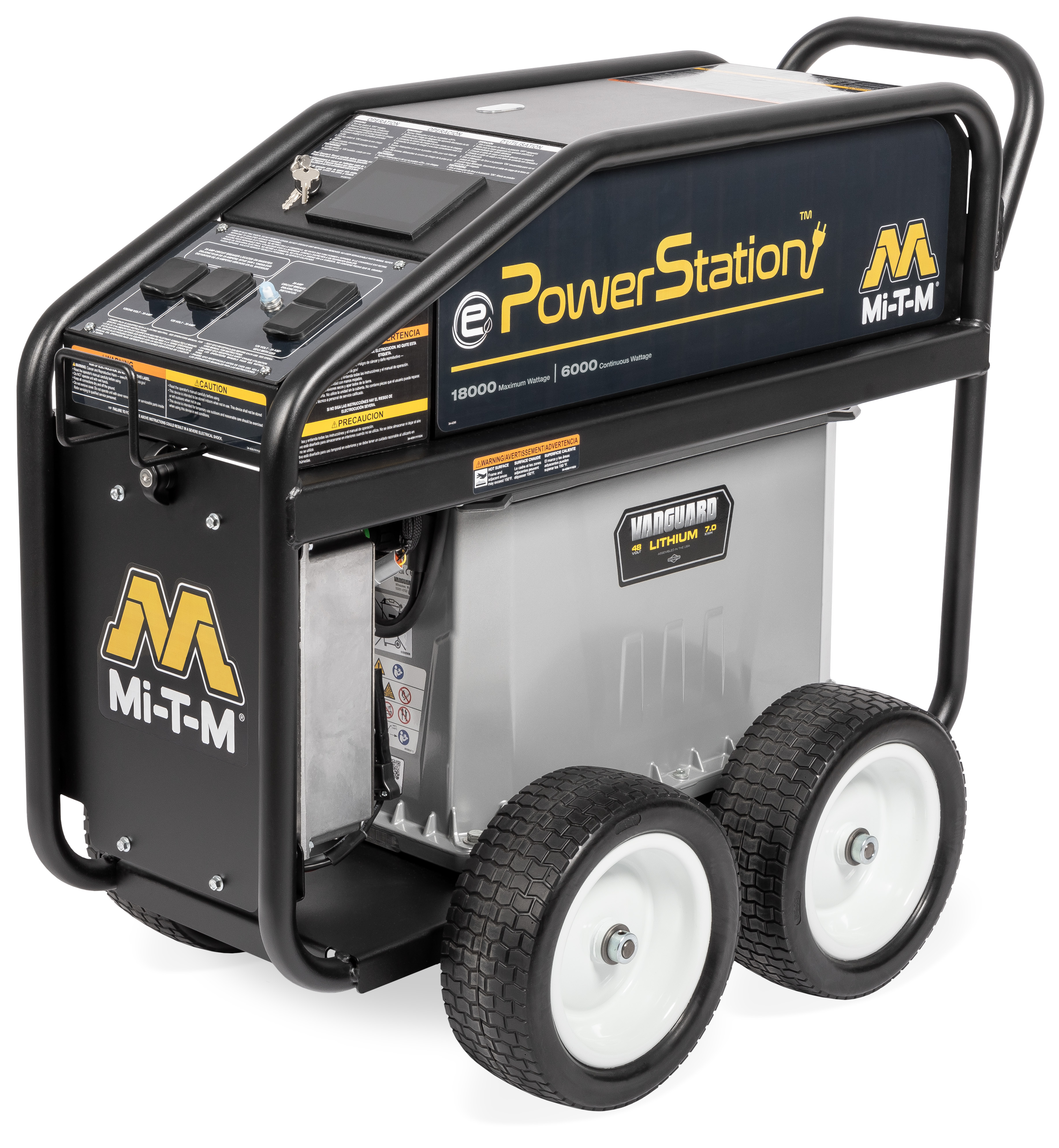

EPS-0607-0VF3M shown with EBOX-0001-M

Specifications

Output: Continuous Wattage

6000 watts
Output: Max Output

18,000 watts (10 sec.)
Output: Power (AC)

120V/240V, 50A/25A, 60Hz, 1Ø
Lithium-ion Battery: Capacity

7.0kWh
Lithium-ion Battery: Voltage (DC)

48V
Battery Charger Charging Time: 0 to 100%

6 hours / 3 hours
Battery Charger Charging Time: 0 to 80%

4 hours / 2 hours

Weights & Dimensions

Net Weight

305.00 lbs.
Shipping Weight

380.00 lbs.
Length

45.13 in.
Width

24.00 in.
Height

35.00 in.

Options - must be ordered with unit and cannot be added later.

EBOX-0001-M

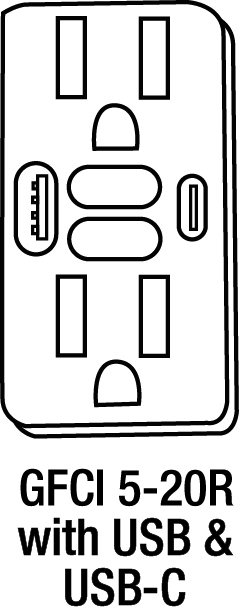

(1) 20A, 120V, GFCI with USB and USB-C / (1) 30A, 120V twist lock / (1) 30A, 120V/240V twist lock
EBOX-0002-M

(1) 30A, 120V twist lock / (2) 20A, 120V, GFCI with USB and USB-C
EBOX-0003-M

(4) 20A, 120V, GFCI with USB and USB-C
EBOX-0004-M

(1) 30A, 120V/240V twist lock / (2) 20A, 120V, GFCI with USB and USB-C
