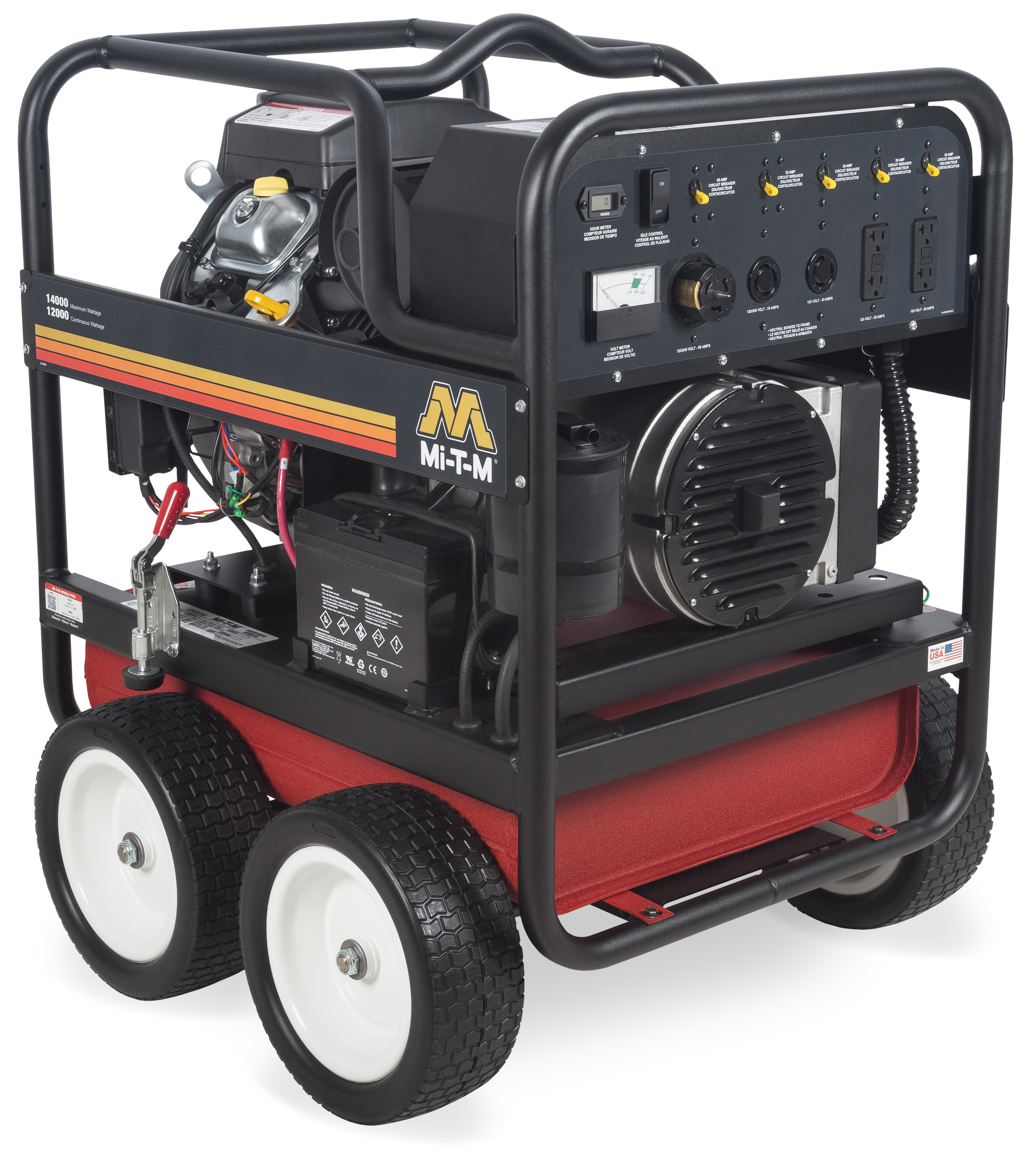

14000-Watt Gasoline Generator - GEN-14000-1MME

GEN-14000-1MME

The most grueling jobs are no match for the 14000-watt generator, and it's designed to move easily from one job to the next.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Engine
Electric start – sealed battery included

Frame
Reinforced powder coated steel frame · 13-inch flat-free tires

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Easy-to-read fuel gauge · Idle control · Voltmeter/hour meter · Heavy-duty industrial air cleaner · USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

  • Max. AC Output

    14000 watts

  • Rated AC Output

    12000 watts

  • Displacement/ Engine

    670cc Mi-T-M OHV

  • Alternator

    Brushless 120V/240V, 60Hz

  • Max. Amps (120V/240V)

    116.7/58.3

  • Cont. Amps (120V/240V)

    100.0/50.0

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 120V/240V, 50A

  • Circuit Breakers

    (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole; (1) 50A Toggle Circuit Breaker, Double Pole

  • Rated Speed

    3600 RPM

  • Decibel Rating

    80.0

  • Fuel Capacity

    13.2 gallons

  • Run Time (At Full Load)

    8.0 hours

Weights & Dimensions

  • Net Weight

    493.00 lbs.

  • Shipping Weight

    553.00 lbs.

  • Length

    31.50 in.

  • Width

    30.50 in.

  • Height

    37.50 in.

Options - must be ordered with unit and cannot be added later.

  • GX-0003 Skid Feet

    For stationary applications

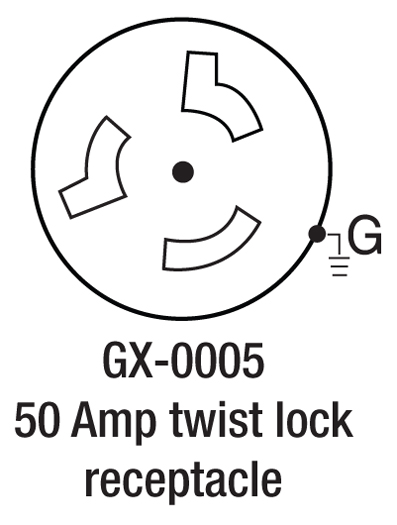

  • GX-0005 50-Amp Twist Lock Receptacle

    Marine receptacle for routine marine applications

Warranty Information
  • 2 Year Alternator
  • 3 Year Mi-T-M Engine
