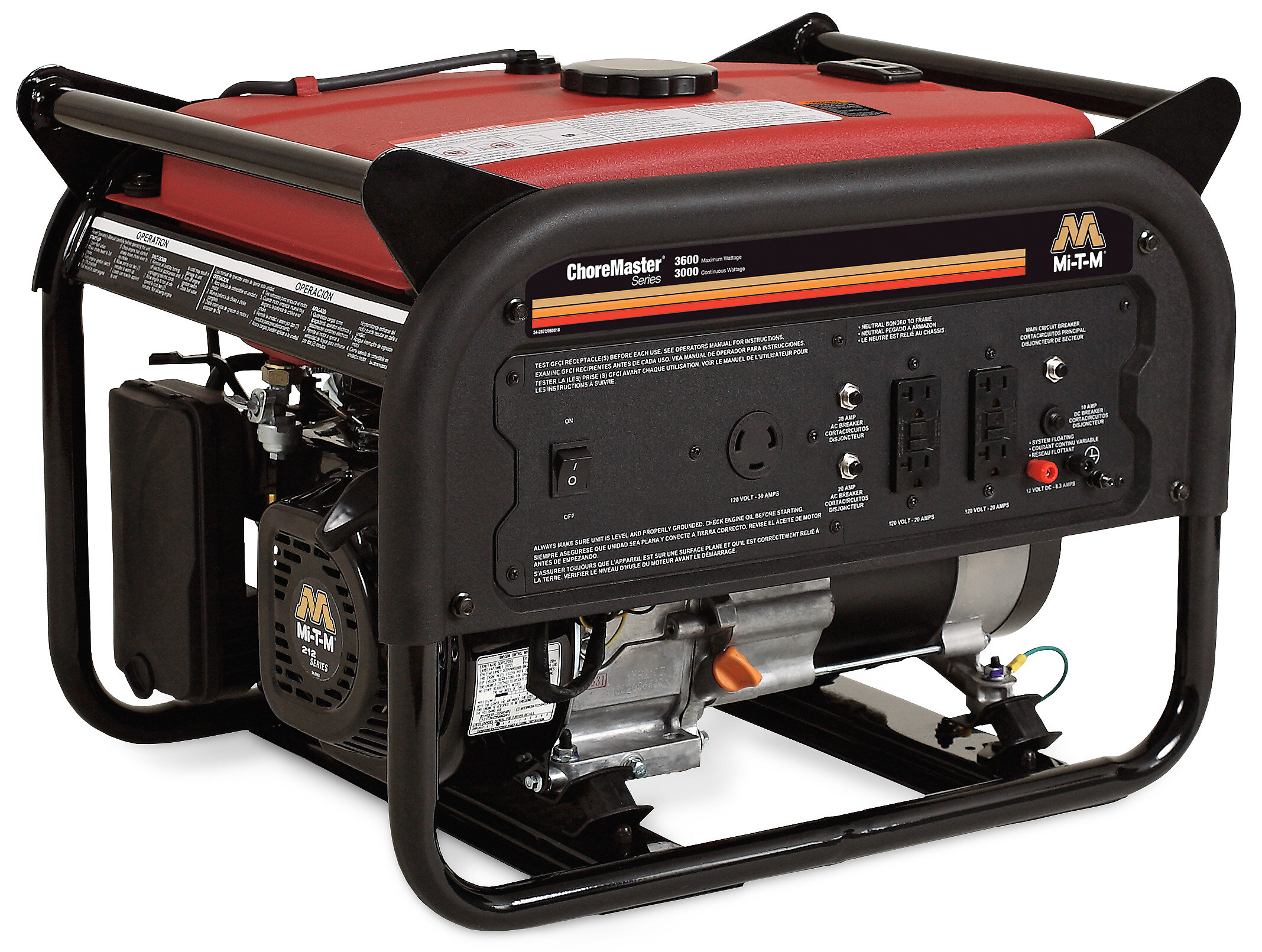

3600-Watt Gasoline ChoreMaster® Generator - GEN-3600-0MM0




Limited Warranties:
- 1 Year Alternator
- 3 Year Mi-T-M Engine
GEN-3600-0MM0
Featuring a 3600-watt generator, the ChoreMaster® Series comes with a Mi-T-M OHV engine and are designed to provide maximum power for contractors and electrical back-up for power outages.
Alternator: Total harmonic distortion (THD) less than 6% · Copper and aluminum windings
Frame: Low profile, compact design · Powder coated wraparound frame with 1-inch steel tubing
Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Engine on/off switch · Fuel shut-off valve · DC/battery charging
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
Specifications
-
Max. AC Output
3600 watts
-
Rated AC Output
3000 watts
-
Displacement/ Engine
212cc Mi-T-M OHV
-
Alternator
Brushed 120V, 60Hz
-
Max. Amps (120V/240V)
30.0
-
Cont. Amps (120V/240V)
25.0
-
Receptacles
(2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 12V DC 8.3A
-
Circuit Breakers
(1) Main Circuit Breaker; (2) 20A Circuit Breakers, Single Pole; (1) 10A DC Breaker
-
Rated Speed
3600 RPM
-
Decibel Rating
72.0
-
Fuel Capacity
4.0 gallon
-
Run Time (At Full Load)
8.5 hours
-
Idle Control
No
-
Wheel Kit
No
Weights & Dimensions
-
Net Weight
102.00 lbs.
-
Shipping Weight
134.00 lbs.
-
Length
24.90 in.
-
Width
17.60 in.
-
Height
17.90 in.
Options
- No options
