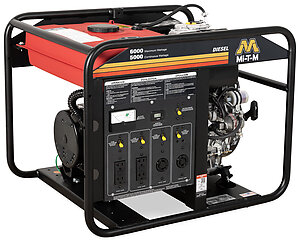

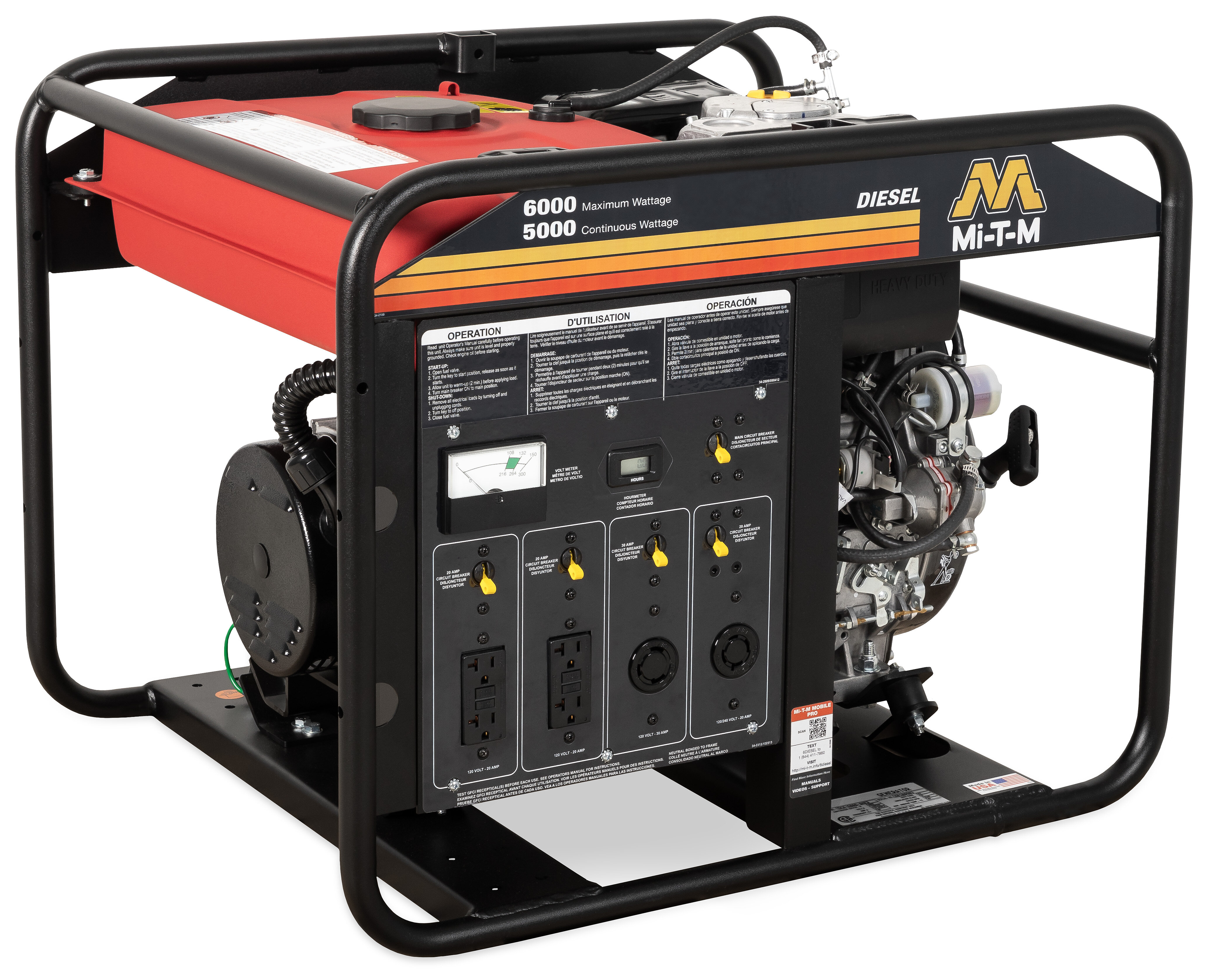

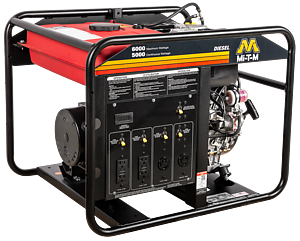

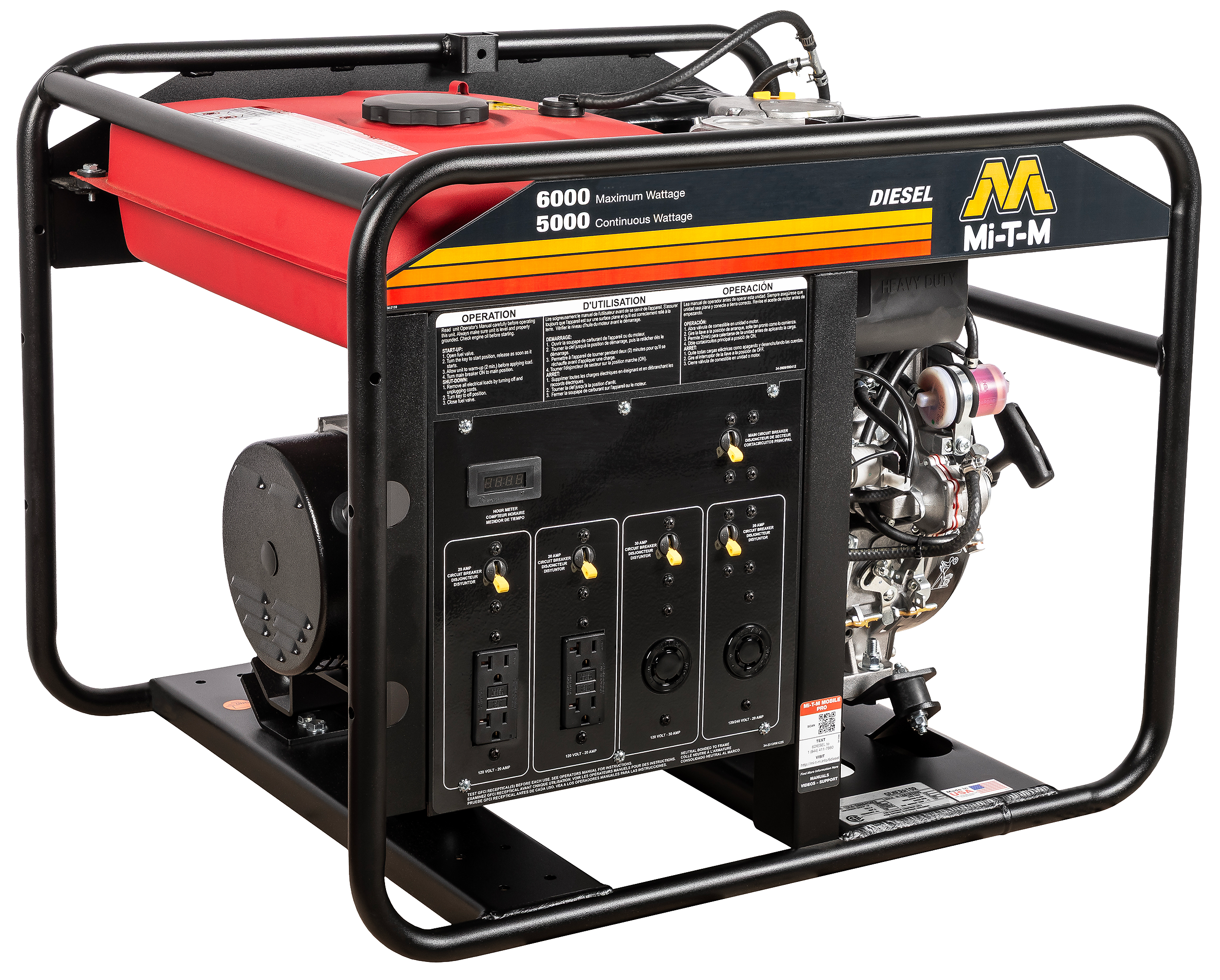

6000-Watt Diesel Generator - GEN-6000-1MKD

GEN-6000-1MKD

Need fuel efficiency and reliability? This generator is ideal for remote jobsites where dependable power is essential.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Engine
Electric start - sealed battery included

Frame
Heavy-duty powder coated wraparound frame · Angled isolator design features six neoprene isolators

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Fuel shut-off valve · Easy-to-read fuel gauge · Voltmeter/hour meter · Heavy-duty industrial air cleaner

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

  • Max. AC Output

    6000 watts

  • Rated AC Output

    5000 watts

  • Horsepower/Engine

    9.1 HP Kohler KD440 OHV

  • Alternator

    Brushless 120V/240V, 60Hz

  • Max. Amps (120V/240V)

    50.0/25.0

  • Cont. Amps (120V/240V)

    41.6/20.8

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock; (1) 120V, 30A Twist Lock

  • Circuit Breakers

    (1) Main Circuit Breaker; (2) 20A Toggle Circuit Breakers, Single Pole; (1) 20A Toggle Circuit Breaker, Double Pole; (1) 30A Toggle Circuit Breaker, Single Pole

  • Rated Speed

    3600 RPM

  • Decibel Rating

    85.0

  • Fuel Capacity

    4.0 gallons

  • Run Time (At Full Load)

    10.4 hours

Weights & Dimensions

  • Net Weight

    280.00 lbs.

  • Shipping Weight

    302.00 lbs.

  • Length

    29.00 in.

  • Width

    24.35 in.

  • Height

    22.50 in.

Options - must be ordered with unit and cannot be added later.

  • No options
Warranty Information
  • 2 Year Alternator
  • 3 Year Kohler Engine
