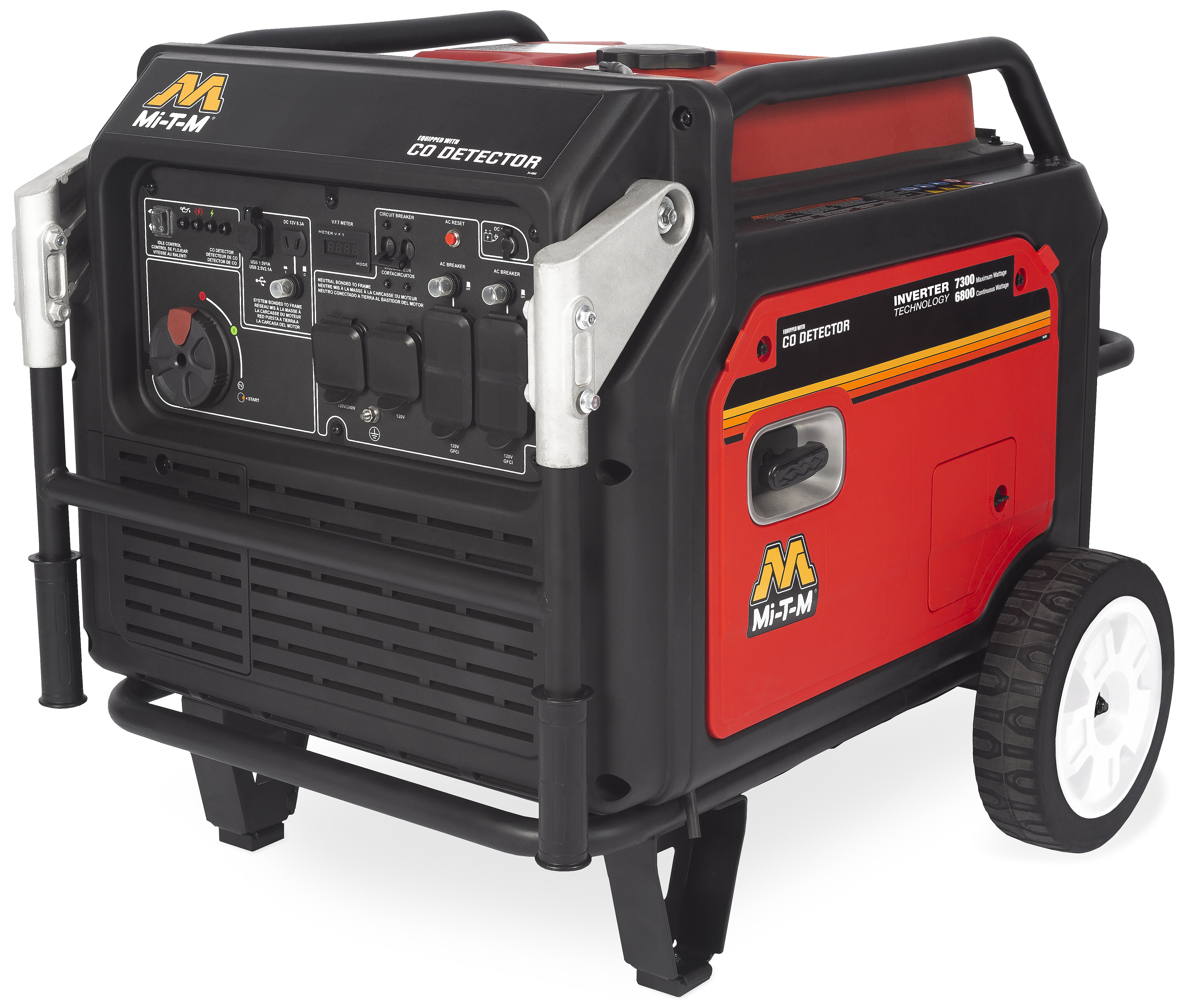

7300-Watt Gasoline Inverter - GEN-8000-IMM1E

GEN-8000-IMM1E

Inverter generators provide safe, quiet and reliable power with carbon monoxide detection and automatic shutdown.

Inverter Technology
Reduced size, weight, noise and fuel consumption · Produces commercial quality AC power for sensitive electronic equipment

Alternator
Total harmonic distortion (THD) less than 3% · Copper windings

Engine
Low-oil shutdown · Recoil start · Electric start – sealed battery included

Frame
Easy to remove access panels for spark plug, oil and air cleaner · Handle and wheels · Outlet covers

Components
Equipped with CO detector with automatic shutdown · DC plug · USB ports for electronics · Idle control · Battery charger · Digital display for voltage, hertz, run hours and total hours · Main circuit breaker · USDA/USFS-approved spark arrestors

Note: All gasoline models sold in California are required to have a CARB compliant engine and fuel system. Consult factory.

Inverter generator ratings represent no-load sound levels. Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

  • Max. AC Output

    7300 watts

  • Rated AC Output

    6800 watts

  • Displacement/ Engine

    420cc Mi-T-M OHV

  • Max. Amps (120V)

    60.8

  • Cont. Amps (120V)

    56.7

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 12V DC 8.3A

  • Rated Speed

    3600 RPM

  • Decibel Rating

    70.0

  • Fuel Capacity

    5.5 gallons

  • Run Time (at half load)

    9.0 hours

Weights & Dimensions

  • Net Weight

    227.00 lbs.

  • Shipping Weight

    238.00 lbs.

  • Length

    34.30 in.

  • Width

    28.60 in.

  • Height

    27.10 in.

Options - must be ordered with unit and cannot be added later.

  • No options
Warranty Information
  • 1 Year Alternator
  • 3 Year Mi-T-M Engine
Additional Info
