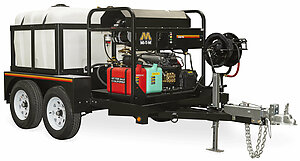

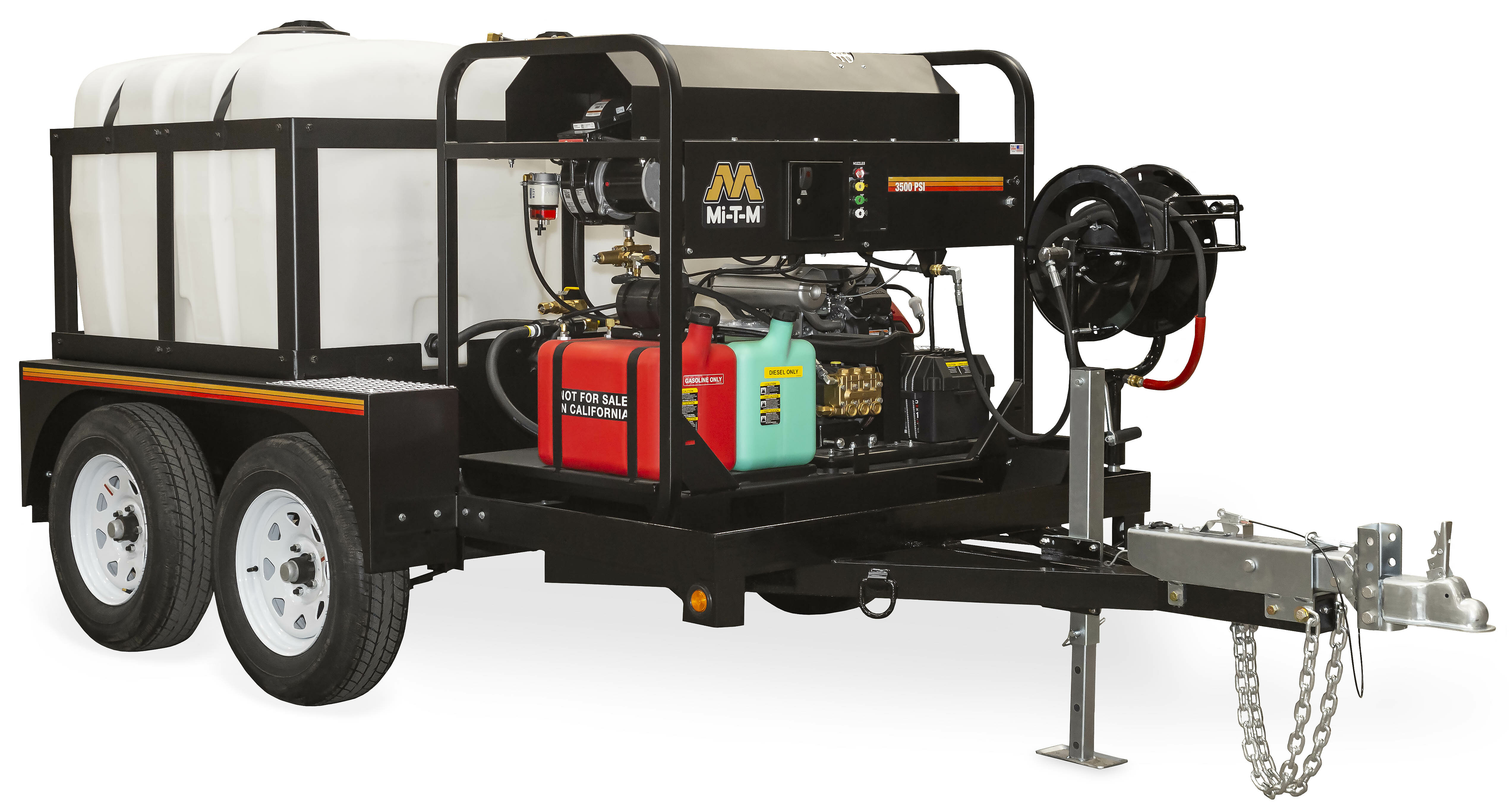

Trailers - Dual Axle

Dual Axle

Pair these robust, customizable trailers with an industrial pressure washer and you can clean dirt and grime anywhere, anytime. They’re perfect for cleaning at remote sites.

Features:
·Jack with pad
·2-inch ball hitch
·Rubber mounted sealed lights
·Tanks are enclosed in a powder coated steel frame
·Will fit all Mi-T-M belt-driven pressure washers
·1/4-inch solid steel trailer deck plate
·Aluminum treadplate steps for access to water tank
·Storage area located under the water tanks (AW-9000-0003 and AW-9000-0004 trailers)
·(2) 200-gallon water tanks plumbed together (AW-9000-0003 and AW-9000-0004 trailers)

Accessories & Options:
·Pressure washers (sold separately)
·Hose reels
·Backflow preventers
·Trailer tank bypass
·Trailer hitches

Models Available:
AW-9000-0003 With surge brakes and (2) 200-gallon water tank
AW-9000-0004 With electric brakes and (2) 200-gallon water tank
AW-9000-0008 With surge brakes and 200-gallon water tank

High Pressure Hose Reels
These high pressure hose reels include a jumper hose and mounting bracket.
TX-0001 (13-inch reel)
TX-0002 (16-inch reel)

Low Pressure Hose Reel
These low pressure hose reels include a mounting bracket and plumbing.
TX-0003 (16-inch reel for use with AW-9000-0003 and AW-9000-0004 trailers)
TX-0013 (16-inch reel for use with AW-9000-0008 trailers)

Replacement Hose Reel Parts
When adding hose reels to the single-axle trailer, use the following jumper and mounting bracket.
15-0159 (40-foot x 3/8-inch jumper hose, black, 4500-PSI)
13-0179A18 (Mounting bracket)
50-0195 (13-inch hose reel, 150-foot maximum hose length, rated for units up to 4000-PSI)
50-0196 (16-inch hose reel, 200-foot maximum hose length, rated for units up to 4000-PSI)

Backflow Preventers
A backflow preventer is required on trailer units in California
TX-0011
·Adds a backflow preventer to trailers that have the TX-0003 and TX-0013 low pressure hose reel option
·Mounts to hose reel
TX-0012
·Adds a backflow preventer to AW-9000-0008 trailers that do not have the TX-0013 low pressure hose reel option
·Mounts to inlet plumbing on trailer

Trailer Tank Bypass
TX-0005 (For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer)
TX-0007 (For use on AW-9000-0008 trailers with a HS Series pressure washer)
· Removes the float system, while adding the necessary plumbing
· Water bypasses back to water tank

Deluxe Trailer Options
TX-0014 (For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer)
TX-0016 (For use on AW-9000-0008 trailers with a HS Series pressure washer)
·Adds a ball valve, trailer tank bypass and low pressure hose reel

Trailer Hitches
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware.
TX-0010 (Adjustable trailer coupler hitch)
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball – all to ensure a quick, easy and secure hook-up
TX-0019 (Lunette ring hitch)
·3-inch integrated lunette ring for use with pintle hitches

Find a Dealer »

Specifications

  • Hitch

    2 in. Ball

  • Tires

    (4) ST205-75R 15 in.

  • Axle

    (2) 3,500 lb.

  • Angle Frame

    3 in. x 4.25 in.

Weights & Dimensions

  • Net Weight

    7000.00 lbs.

  • Shipping Weight

    0.00 lbs.

  • Length

    158.40 in.

  • Width

    81.60 in.

  • Height

    67.20 in.

Options

  • No options
