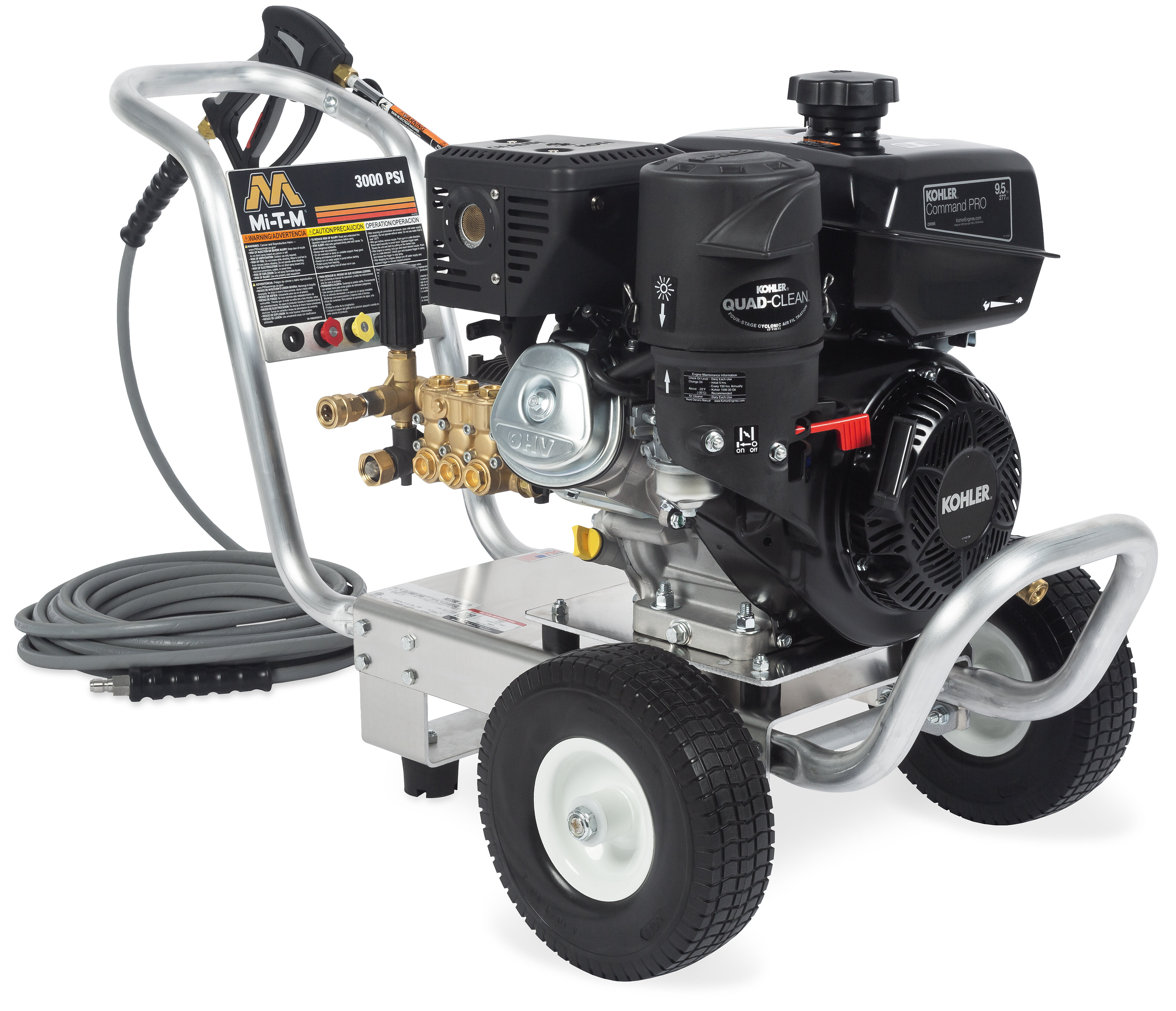

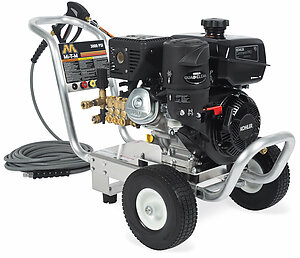

CA Aluminum Series Gasoline Direct Drive - CA-3003-1MAK

CA-3003-1MAK

Contractors choose the CA Aluminum Series for power and portability. This series is equipped with a corrosion-resistant aluminum frame and patented vibration plate for added durability.

Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · In-line water strainer

Frame
Corrosion-resistant aluminum frame · Patented vibration isolation plate · 10-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15° and 25° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

  • PSI

    3000

  • GPM

    3.0

  • Displacement/ Engine

    277cc Kohler CH395 OHV

  • Pump

    AR

  • Unloader

    Mi-T-M, Adjustable Pressure

  • Lance

    36 in.

Weights & Dimensions

  • Net Weight

    105.00 lbs.

  • Shipping Weight

    155.00 lbs.

  • Length

    42.50 in.

  • Width

    23.50 in.

  • Height

    24.50 in.

Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

  • CX-0099 External Bypass System

    Allows more water into the system to protect from heat build-up

Warranty Information
  • 1 Year Mi-T-M Unloader
  • 3 Year Kohler Engine
  • 7 Year AR Pump
Additional Info
  • pressure relief start
