CA-4004-PMAH

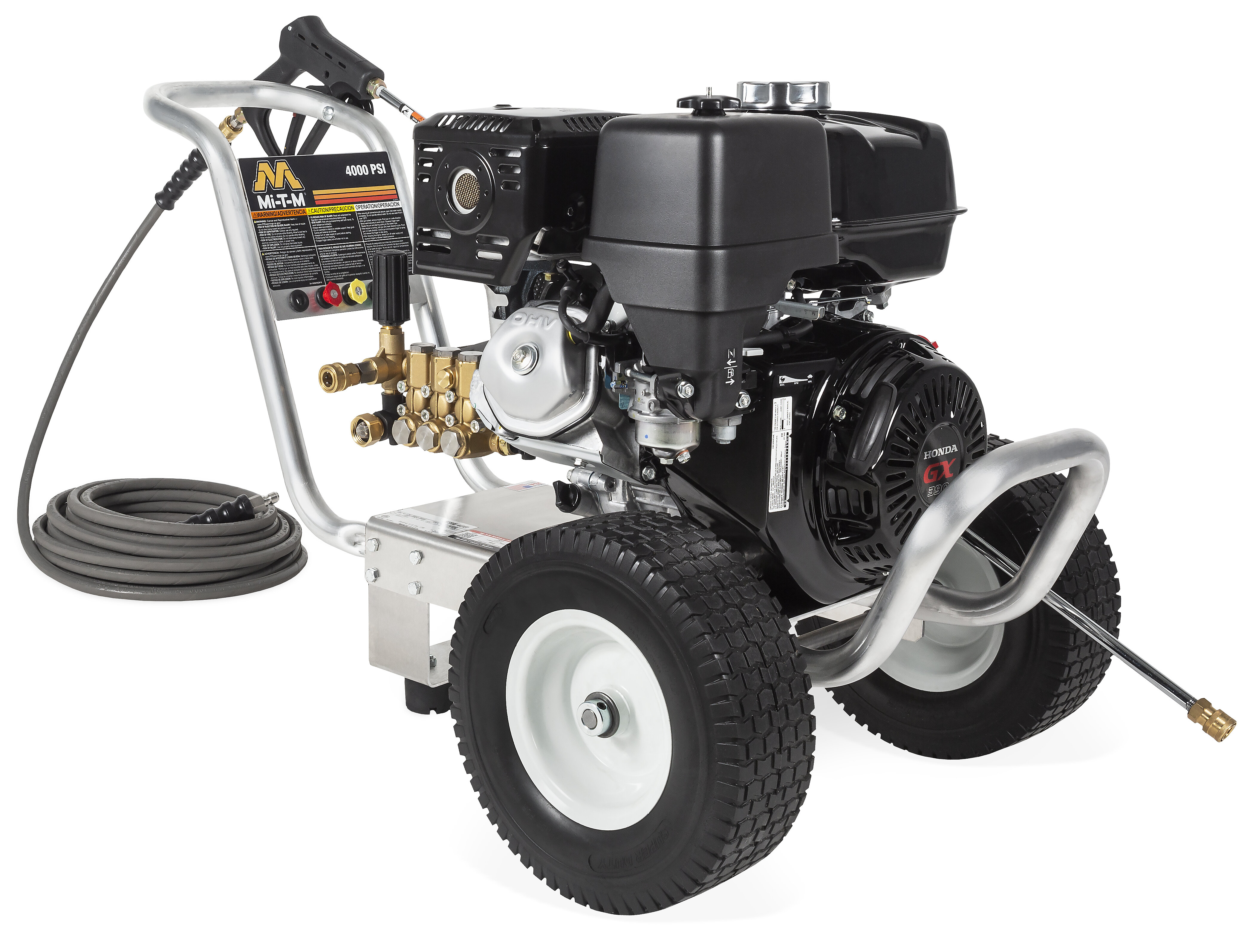

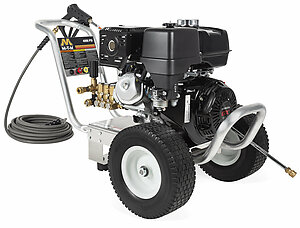

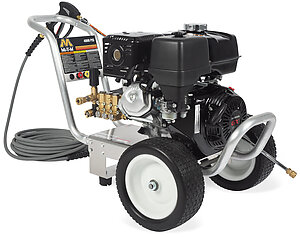

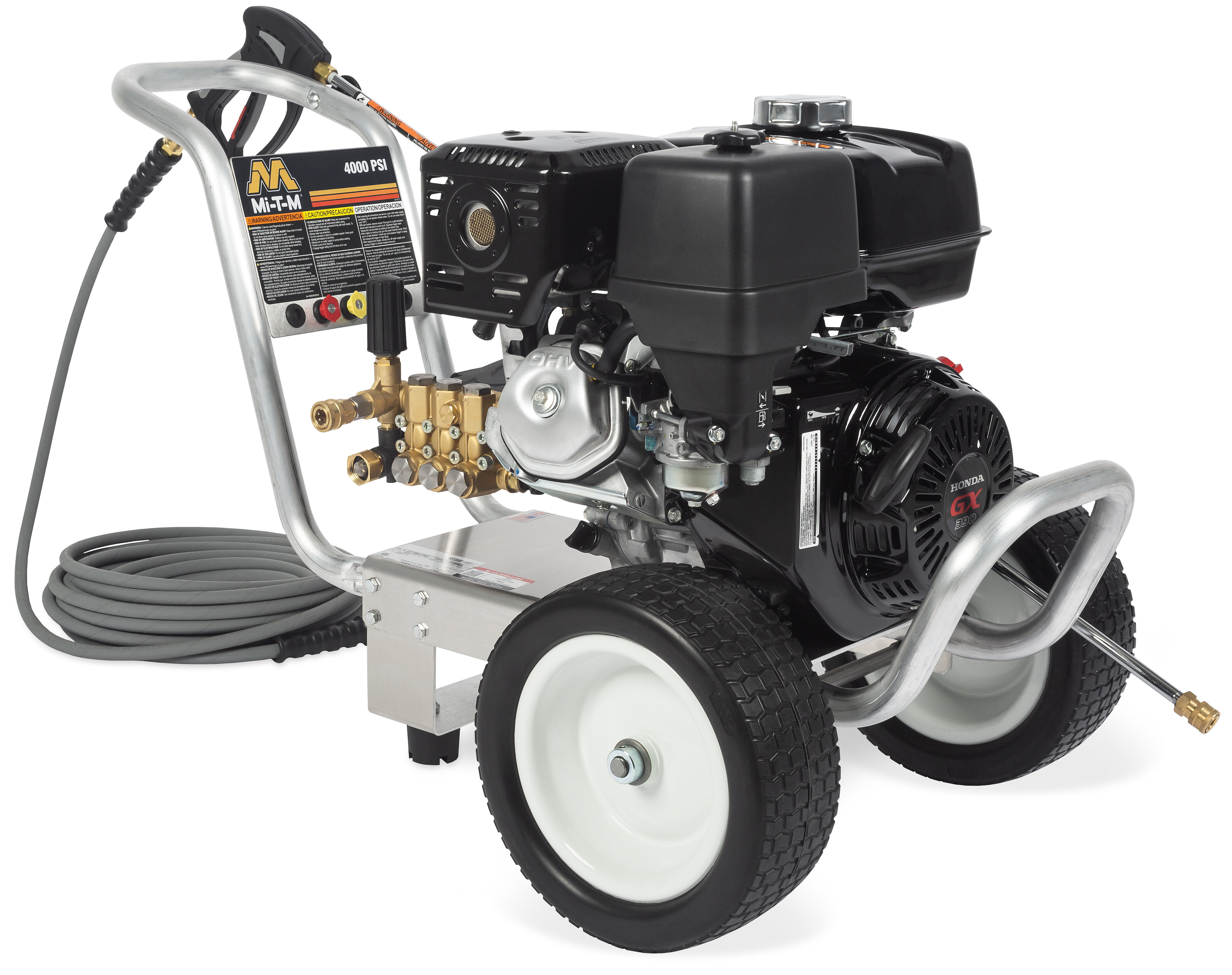

Remove tough stains from brickwork, concrete and other surfaces with this powerful pressure washer. The all-aluminum design makes it easy to move from one job to the next without sacrificing performance.

Pump: Direct drive triplex piston AR pump · Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · In-line water strainer · Low pressure quick connect-style detergent injector

Frame: Lightweight, corrosion-resistant aluminum frame and base plate with 1-1/4-inch tube handles · 13-inch flat-free tires

Unit Includes: Quick connect nozzles – 0°, 15° and 25° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

49 state engine. Not for sale in California.

Specifications

  • PSI

    4000

  • GPM

    3.5

  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Pump

    AR

  • Unloader

    Mi-T-M, Adjustable Pressure

  • Recommended Usage

    20-30 Hours/Week

Weights & Dimensions

  • Net Weight

    125.00 lbs.

  • Shipping Weight

    175.00 lbs.

  • Length

    42.50 in.

  • Width

    23.50 in.

  • Height

    24.50 in.

Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

  • CX-0098 External Bypass System

    Allows more water into the system to protect from heat build-up
