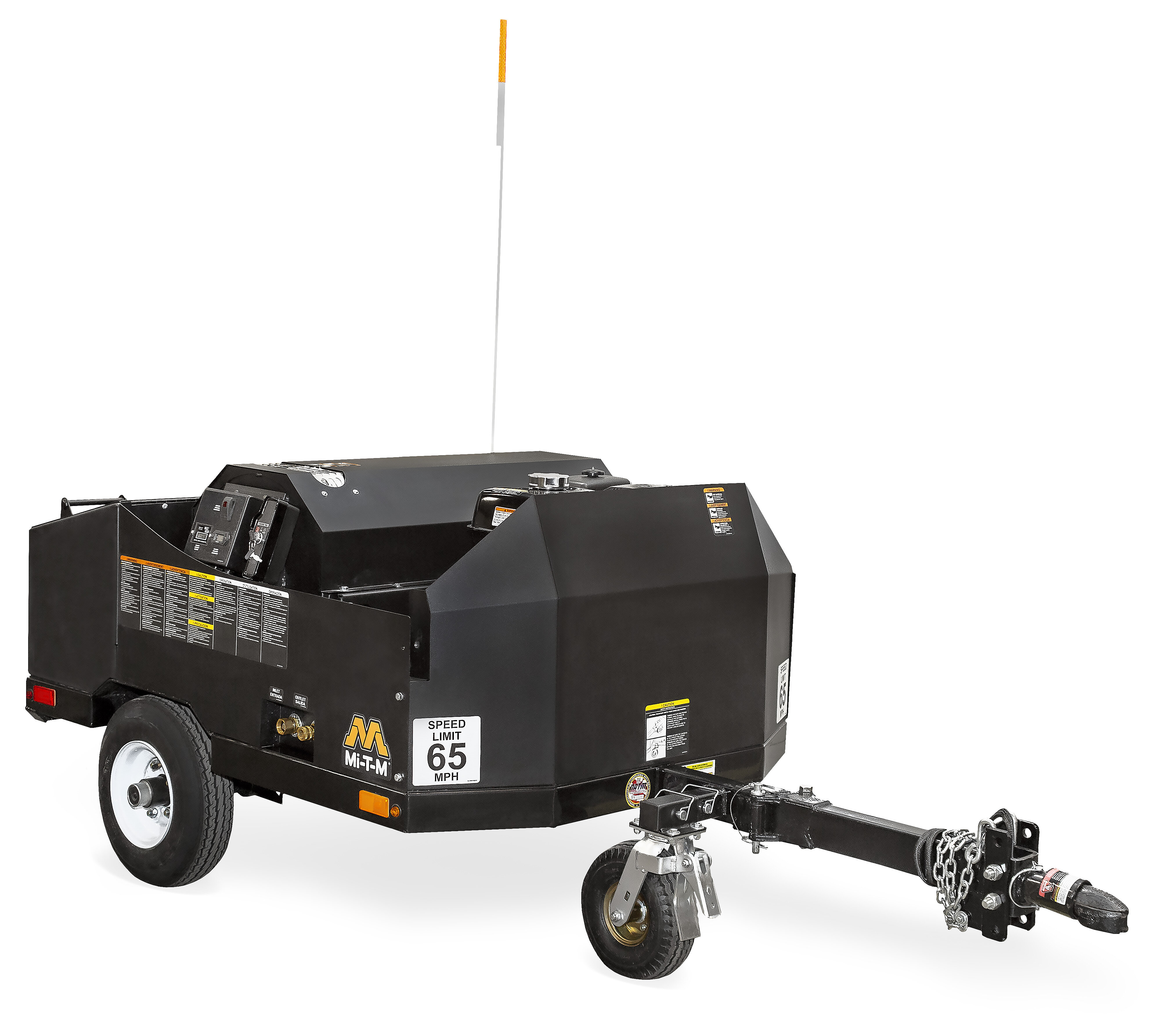

Hot Water Mini Trailer - HMT-4004-0MGH


Portable Gasoline

Belt Drive – Trailer-Mount Pressure Washer

The compact design of the hot water mini trailer offers ease of transport without sacrificing powerful cleaning capabilities.  This trailer package is engineered with a durable powder coated steel frame, a rear locking storage area and an industrial 4000-PSI belt-driven pressure washer with a 12V Beckett burner.

Pump:  Belt drive triplex piston General pump with ceramic plungers · Adjustable stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Engine:  Performance proven Honda engine with low-oil protection · Remote engine start and choke · 12V electric start – battery not included

Frame:  Reinforced powder coated steel frame · Locking rear storage area – 2.875 cubic feet · Sealed LED trailer lights · 2-inch ball hitch · Caster brake (Use when unhitched)

Components:  ½-inch schedule 80 pipe coil with 4-pancake heat exchanger · 12V Beckett burner · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Engine and burner hour meters

Miscellaneous:  Temperature rise 140°F/60°C above ambient

Safety Features:  Removable safety flag for transportation and guidance when backing up · Recommended maximum speed is 65 mph · DOT approved and National Association of Trailer Manufacturers (NATM) certified trailer · 250°F high temperature safety limit switch

Unit Includes:  Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire braided high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Find a Dealer »


  • PSI


  • GPM


  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Pump


  • Engine Fuel Tank Capacity

    1.61 gallon

  • Burner Fuel Tank Capacity

    10.0 gallon

  • BTU Per Hour


  • Axle

    1,000 lb.

  • Tires

    (2) 4.80-8 8in. bias ply

Weights & Dimensions

  • Net Weight

    1000.00 lbs.

  • Shipping Weight

    1000.00 lbs.

  • Length

    99.00 in.

  • Width

    43.50 in.

  • Height

    36.00 in.


  • TX-0010 Adjustable Trailer Coupler Hitch

    Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket

  • TX-0020 High Pressure Hose Real

    12-inch hose reel, 100-foot maximum hose length
