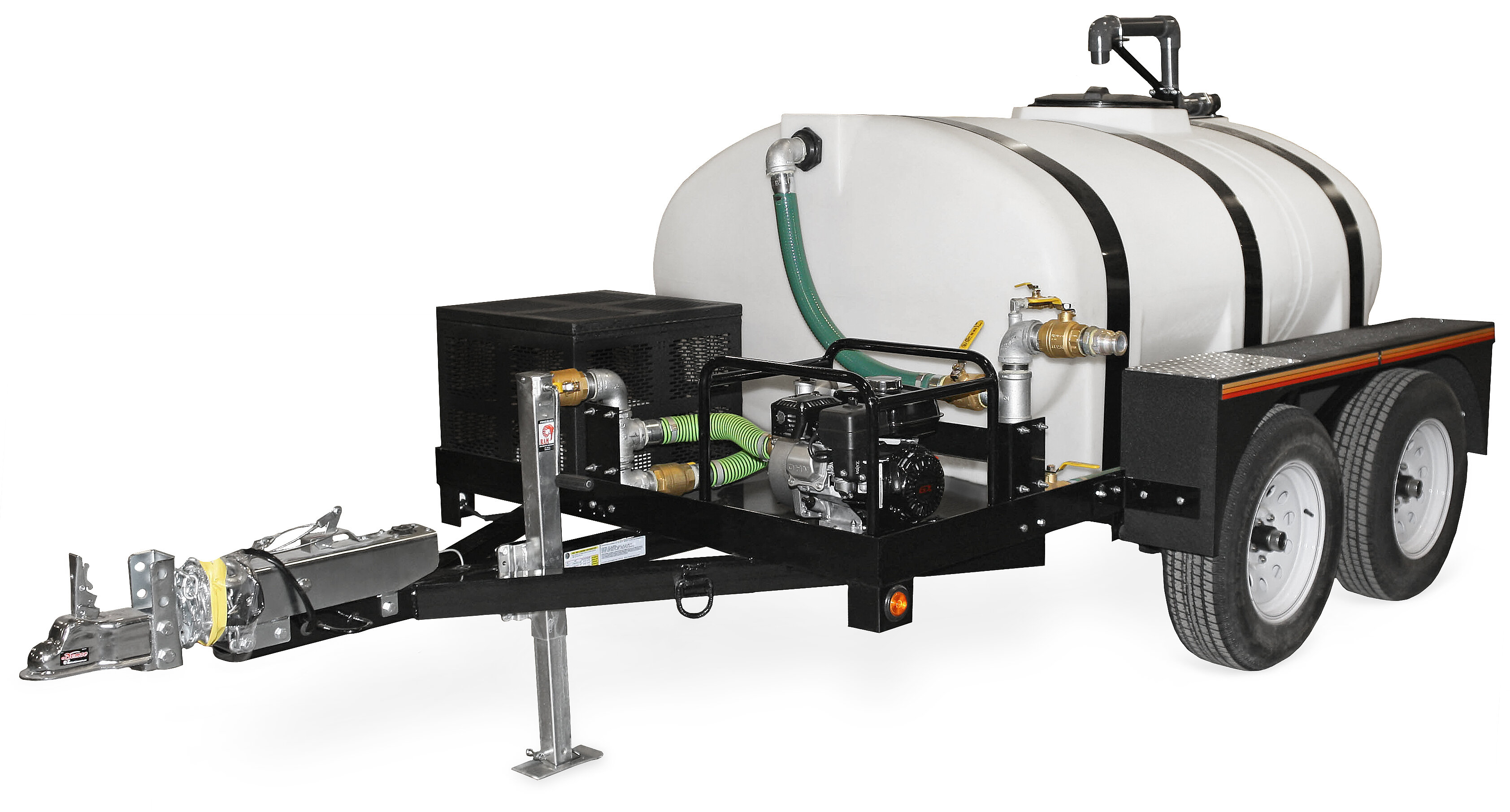

Water Transport Trailer - MWT-0510-2MHD


This water trailer is equipped with a 510-gallon water tank and is ideal for dust control and water transportation.

510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent and a sump pump

Central Manifold
Easy-to-operate butterfly brass valves

1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 2 1/2-inch hose · Dual rear spray heads · Garden hose connector · Manifold discharge system · Water hammer prevention valve

DOT approved · 12-inch under-clearance at axle · 7,000-lb. side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights · Wire storage basket · Two safety chains with snap hooks · (4) ST225-75 15-inch tires

Semi-Trash Pump
2-inch suction and discharge that handles solids up to 3/4-inch diameter · Heavy-duty powder coated wraparound frame · Silicon carbide mechanical seals · Precision molded cast iron impeller and volute for reduced vibration and wear


  • Displacement/ Engine

    196cc Honda GX200 OHV

  • Pump

    2 in. Semi-Trash

  • Hitch

    2 in. Ball

  • Axle

    (2) 3,500 lb. Tandem with Hydraulic Surge Brakes

  • Bed Frame

    5 ft. x 8 ft.

  • Trailer Weight (Loaded)

    5,900 lb.

Weights & Dimensions

  • Net Weight

    1580.00 lbs.

  • Shipping Weight

    1580.00 lbs.

  • Length

    164.40 in.

  • Width

    81.60 in.

  • Height

    69.60 in.


  • TX-0008 Hard Suction Option

    Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage. Fits all models without TX-0024 water bypass option.

  • TX-0010 Adjustable Trailer Coupler Hitch

    Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket

  • TX-0019 Lunette Ring Hitch

    Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches

  • TX-0024 Water Bypass

    Allows you to bypass water from the outlet back to the tank. This can be used to reduce outlet pressure and flow for desired application. Fits all models without the TX-0008 hard suction option.

Warranty Information
  • 1 Year Trailer
  • 2 Year Pump
  • 3 Year Honda Engine
  • 3 Year Water Tank
