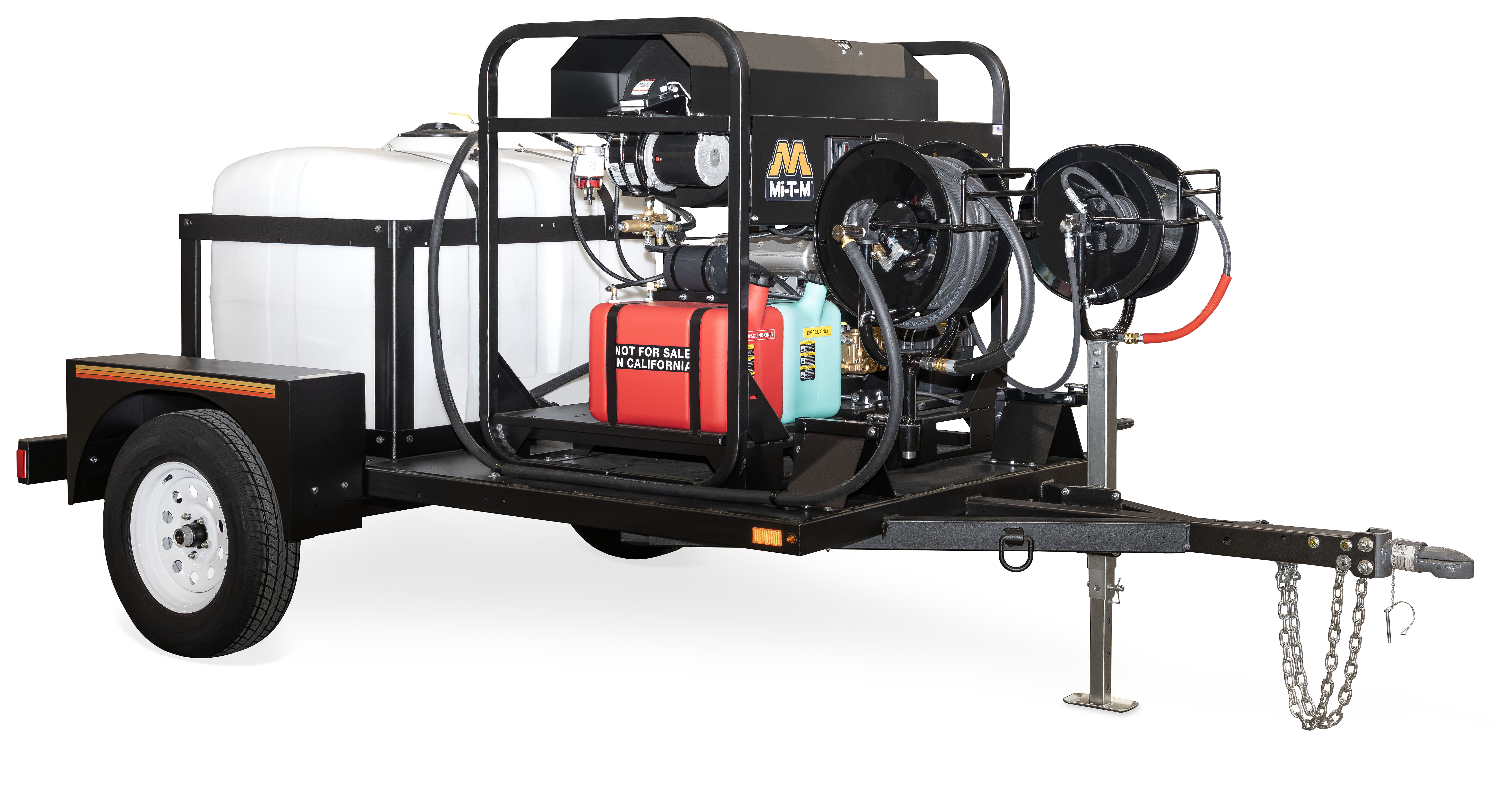

Trailers - Single Axle

Single Axle

Pair these trailers with a pressure washer, hose reels and accessories for the perfect cleaning setup.

Features
·Jack with pad
·2-inch ball hitch
·Rubber mounted sealed lights
·Tanks are enclosed in a powder coated steel frame
·Will fit all Mi-T-M belt-driven pressure washers
·3/16-inch solid steel trailer deck plate
·(1) 200-gallon water tank
·Backflow preventers
·Trailer tank bypass

STEP 1: PICK A MODEL
AW-9000-0005 with surge brakes
AW-9000-0006 with electric brakes
AW-9000-0007 with no brakes

STEP 2: PICK YOUR TRAILER ACCESSORIES & OPTIONS
Options must be ordered with unit and cannot be added later.

Hose Reels
High Pressure Hose Reels
These high pressure hose reels include a jumper hose and mounting bracket.
TX-0001 13-inch reel
TX-0002 16-inch reel

Dual High Pressure and Single Low Pressure Hose Reel
Includes jumper hoses, mounting brackets and plumbing for two high pressure hose reels and one low pressure hose reel.
TX-0023 16-inch reel

Low Pressure Hose Reel
This low pressure hose reel includes a mounting bracket and plumbing.
TX-0013 16-inch reel

Replacement Hose Reel Parts
When adding hose reels to the dual-axle trailer, use the following hoses and mounting brackets.
15-0159 40-inch x 3/8-inch jumper hose, black, 4500-PSI
15-0006 50-foot x 3/4-inch water supply hose
13-0179A18 Mounting bracket, low pressure hose reel/single high pressure reel
13-0258A18 Mounting bracket, dual high pressure reels
50-0195 13-inch hose reel, 150-foot maximum hose length, rated for units up to 4000-PSI
50-0196 16-inch hose reel, 200-foot maximum hose length, rated for units up to 4000-PSI

Tank Drains
Single Tank Drain
This tank drain includes a valve and drain hose for trailers equipped with a single 200-gallon water tank.
TX-0021 Tank drain

Trailer Hitches
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware.
TX-0009 Adjustable trailer coupler hitch for AW-9000-0006 and AW-9000-0007 trailers
TX-0010 Adjustable trailer coupler hitch for AW-9000-0005 trailers
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual
indication of proper closure around the ball – all to ensure a quick, easy and secure hook-up
TX-0018 Lunette ring hitch for AW-9000-0006 and AW-9000-0007 trailers
TX-0019 Lunette ring hitch for AW-9000-0005 trailers
·3-inch integrated lunette ring for use with pintle hitches

STEP 3: PICK YOUR PRESSURE WASHER AND OPTIONS
Choose a cold or hot water belt-driven pressure washer for your cleaning needs. Consult factory for skid prep options and additional pressure washer options available.
Pressure washers sold separately.
