HSP Series Gasoline Direct Drive - HSP-2503-0MMH

CSA Certified C&US
Limited Warranties:
  • 3 Year Coil
  • 3 Year Honda Engine
  • 7 Year Mi-T-M Pump

Download Catalog »

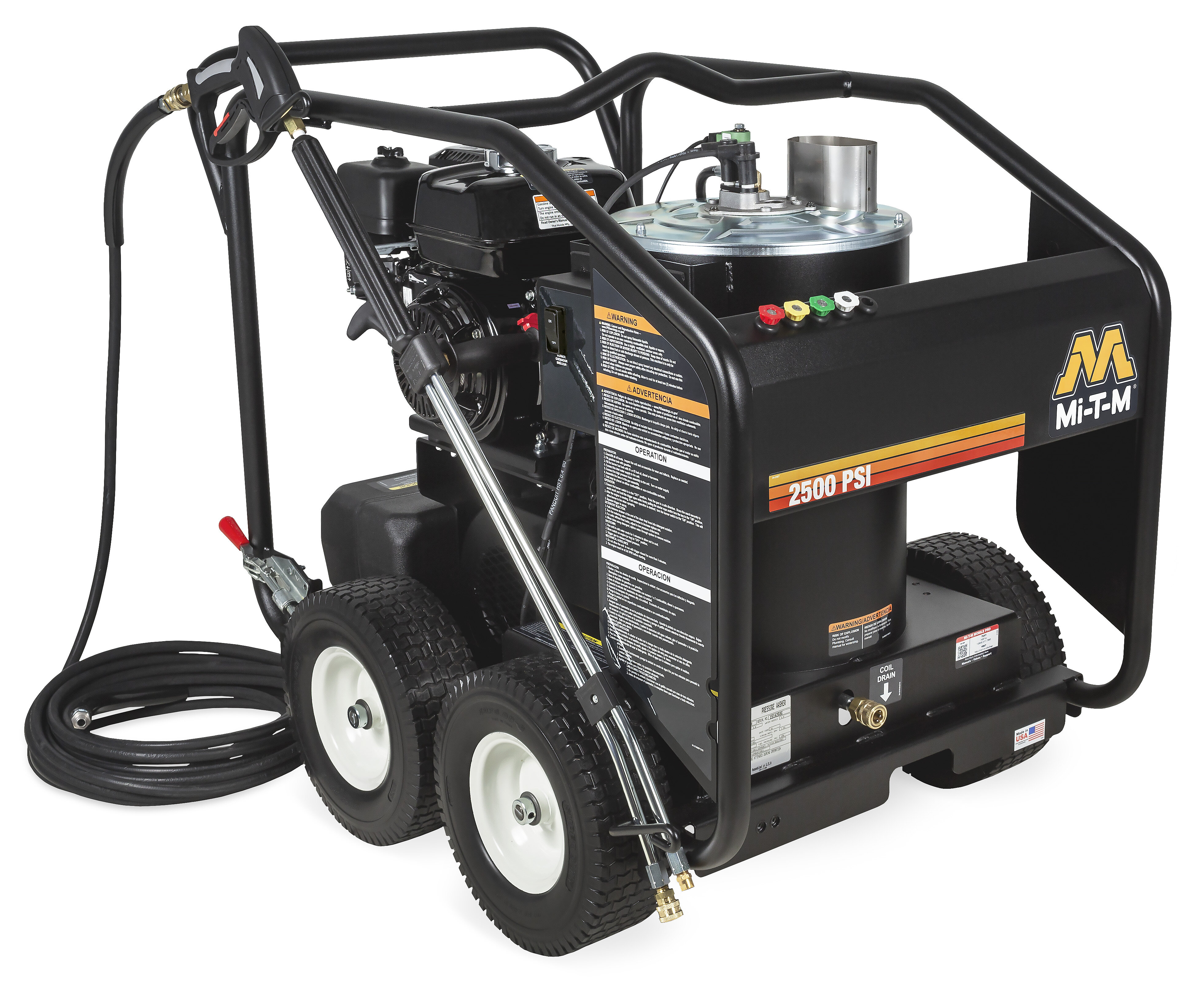

HSP-2503-0MMH

The Electro Magnetic Firing (EMF) system of the HSP Series, along with its unique burner design, makes this popular hot water pressure washer one of the most "in-demand" in the industry. It's a great solution for removing heavy mud from construction and ag equipment.

Pump: Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Frame: Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires

Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

View Product Sheet »

Find a Dealer »

Specifications

  • PSI

    2500

  • GPM

    2.6

  • Displacement/ Engine

    196cc Honda GX200 OHV

  • Pump

    Mi-T-M

  • Mi-T-M No.

    3-0417

  • Fuel Tank Capacity

    0.95 gallon

  • Burner Fuel Tank Capacity

    4.0 gallon

  • Burner Fuel Cons.

    1.53 gph

  • BTU Per Hour

    210,000

Weights & Dimensions

  • Net Weight

    295.00 lbs.

  • Shipping Weight

    411.00 lbs.

  • Length

    43.00 in.

  • Width

    29.50 in.

  • Height

    36.50 in.

Options

  • HX-0233 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0234 Low Pressure Detergent Injector

    Allows the user to apply the recommended detergents

  • HX-0236 Hour Meter

    Displays the number of hours unit has been in operation
