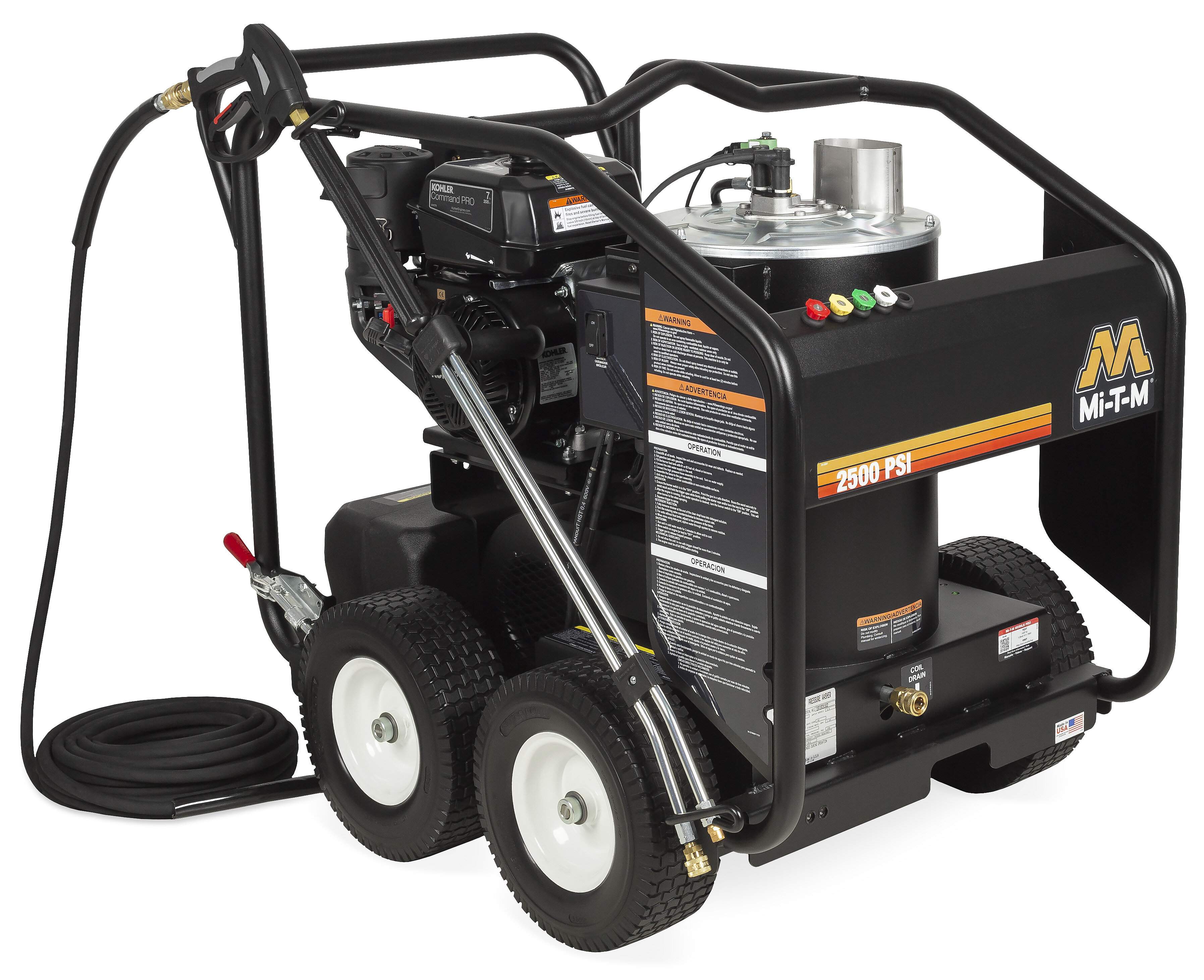

HSP Series Gasoline Direct Drive - HSP-2503-0MMK

HSP-2503-0MMK

The HSP Series features a unique Electro Magnetic Firing (EMF) system and is great for removing grease and oils from equipment and garage and workshop floors.

Pump
Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

  • PSI

    2500

  • GPM

    2.6

  • Displacement/ Engine

    208cc Kohler CH270 OHV

  • Pump

    Mi-T-M

  • Engine Fuel Tank Capacity

    0.78 gallon

  • Burner Fuel Tank Capacity

    4.0 gallon

  • Burner Fuel Cons.

    1.53 gph

  • BTU Per Hour

    210,000

Weights & Dimensions

  • Net Weight

    295.00 lbs.

  • Shipping Weight

    411.00 lbs.

  • Length

    43.00 in.

  • Width

    29.50 in.

  • Height

    36.50 in.

Options

  • HX-0233 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0234 Low Pressure Detergent Injector

    Allows the user to apply the recommended detergents

  • HX-0236 Hour Meter

    Displays the number of hours unit has been in operation

Warranty Information
  • 3 Year Coil
  • 3 Year Kohler Engine
  • 7 Year Mi-T-M Pump
