HSP Series Gasoline Direct Drive - HSP-3504-3MGH

CSA Certified C&US
Limited Warranties:
  • 3 Year Coil
  • 3 Year Honda Engine
  • 7 Year AR Pump

Download Catalog »

View Product Sheet »

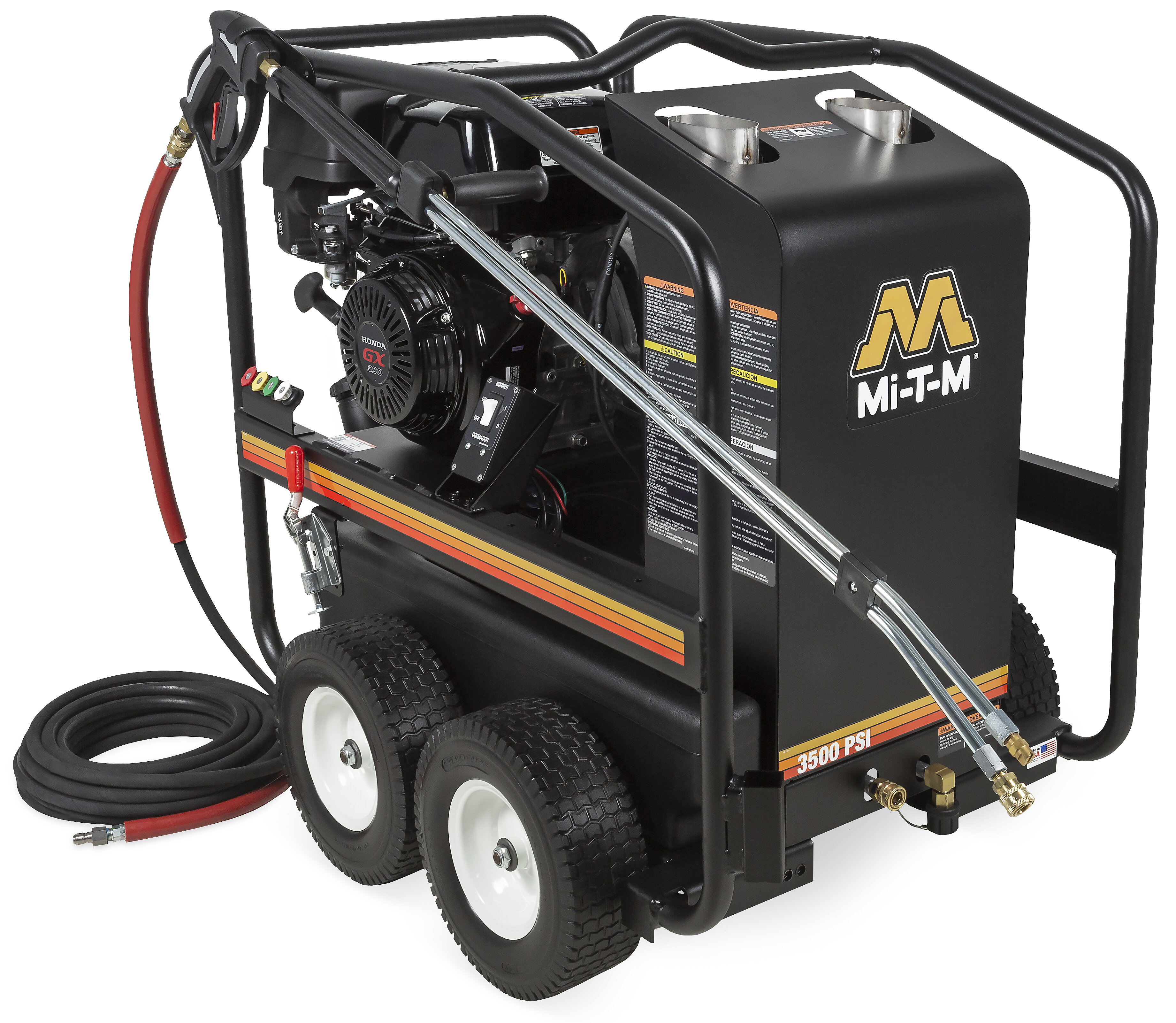

HSP-3504-3MGH

One of the most popular hot water pressure washers, the HSP Series features a unique Electro Magnetic Firing (EMF) system and is great for removing mud and muck.

Pump: External bypass system protects from heat build-up · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector

Frame: Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

49 state engine. Not for sale in California.

Find a Dealer »

Specifications

  • PSI

    3500

  • GPM

    3.3

  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Pump

    AR

  • Engine Fuel Tank Capacity

    1.61 gallon

  • Burner Fuel Tank Capacity

    5.5 gallon

  • Burner Fuel Cons.

    2.14 gph

  • BTU Per Hour

    294,000

Weights & Dimensions

  • Net Weight

    428.00 lbs.

  • Shipping Weight

    551.00 lbs.

  • Length

    43.00 in.

  • Width

    30.00 in.

  • Height

    41.00 in.

Options

  • HX-0098 Electric Start - Sealed Battery Included

    For easy starting

  • HX-0274 Rain Cap

    Protects boiler from moisture build-up when unit is left outside

  • HX-0279 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0280 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0281 Hour Meter / Adjustable Thermostat

    Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0300 Skid Feet

    Stationary applications
