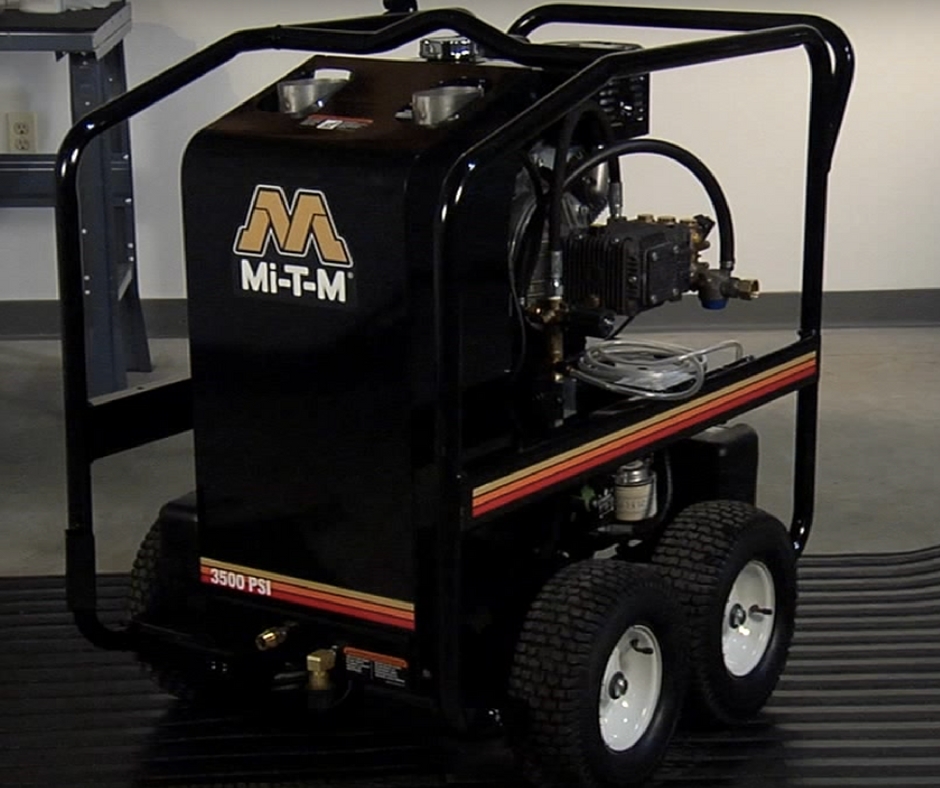

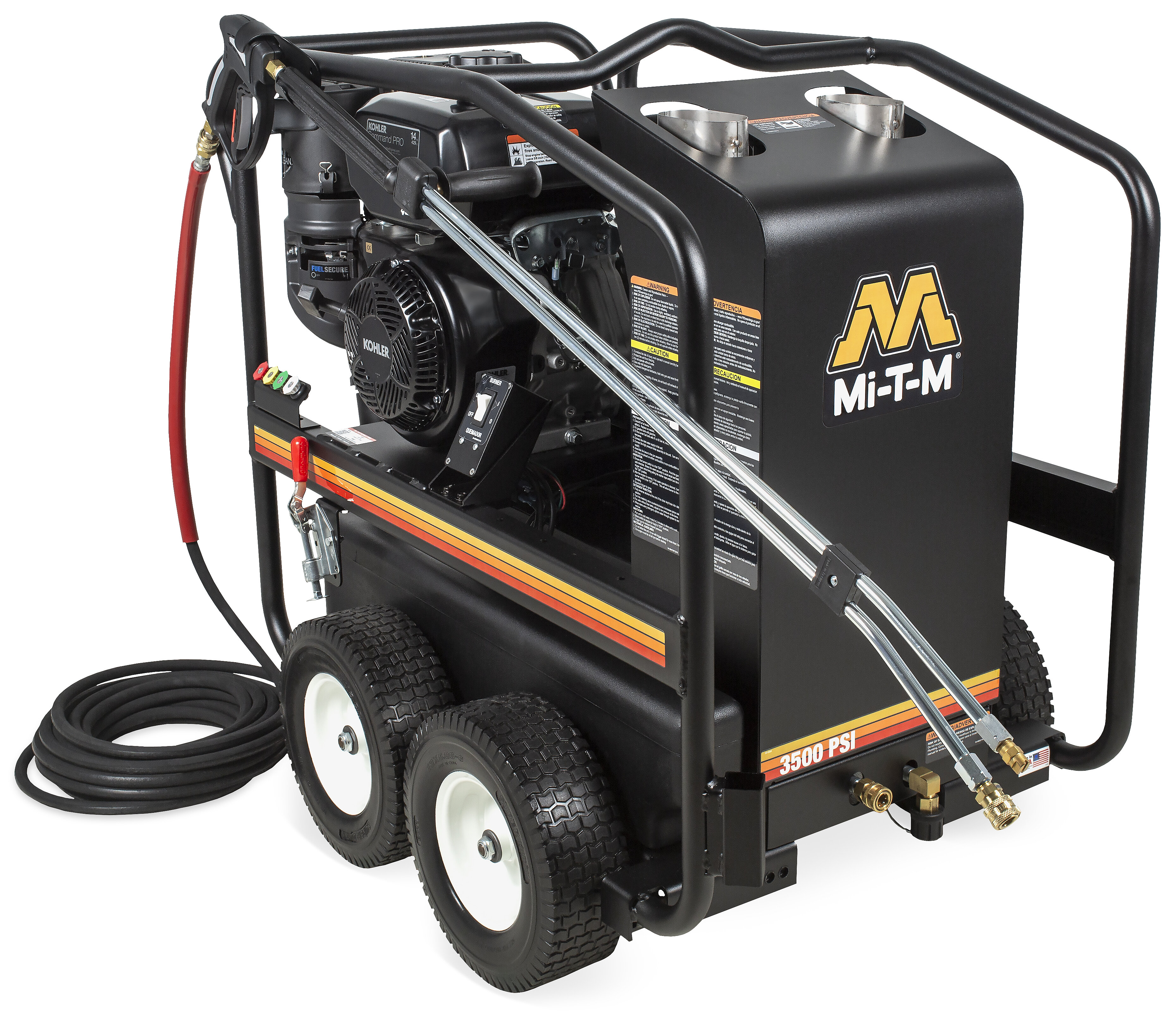

HSP Series Gasoline Direct Drive - HSP-3504-3MGK

HSP-3504-3MGK

This pressure washer easily eliminates grease and oils from equipment, garage floors and workshops and is equipped with an Electro Magnetic Firing (EMF) system.

Pump
External bypass system protects from heat build-up · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

  • PSI

    3500

  • GPM

    3.3

  • Displacement/ Engine

    429cc Kohler CH440 OHV

  • Pump

    AR

  • Engine Fuel Tank Capacity

    1.85 gallon

  • Burner Fuel Tank Capacity

    5.5 gallon

  • Burner Fuel Cons.

    2.14 gph

  • BTU Per Hour

    294,000

Weights & Dimensions

  • Net Weight

    428.00 lbs.

  • Shipping Weight

    551.00 lbs.

  • Length

    43.00 in.

  • Width

    30.00 in.

  • Height

    41.00 in.

Options - must be ordered with unit and cannot be added later.

  • HX-0274 Rain Cap

    Protects boiler from moisture build-up when unit is left outside

  • HX-0279 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0280 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0281 Hour Meter / Adjustable Thermostat

    Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F

  • HX-0300 Skid Feet

    Stationary applications

  • HX-0302 Electric Start - Sealed Battery Included

    For easy starting

Warranty Information
  • 3 Year Coil
  • 3 Year Kohler Engine
  • 7 Year AR Pump
Additional Info

Related Parts & Accessories

Fiberglass Extended Reach Wand

12-Foot Fiberglass Extended Reach Wand
AW-7018-1200

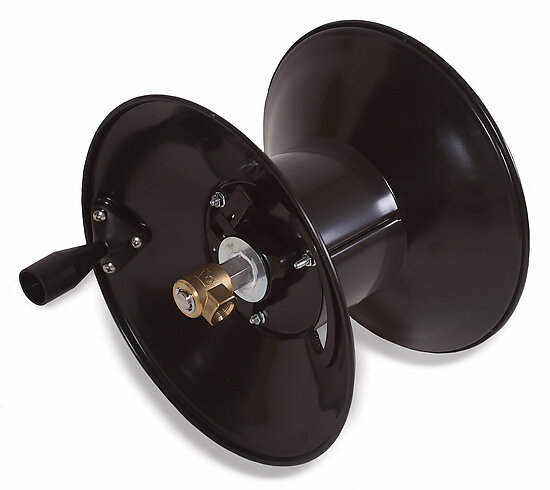

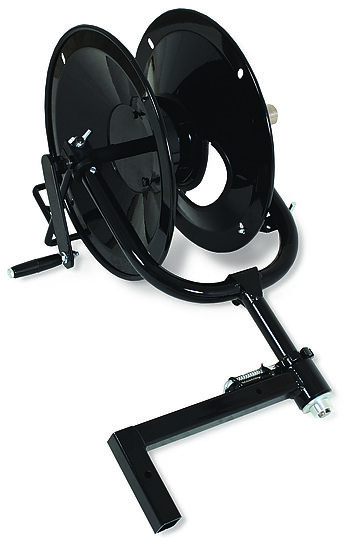

13-Inch Hose Reels

pressure washer surface cleaner

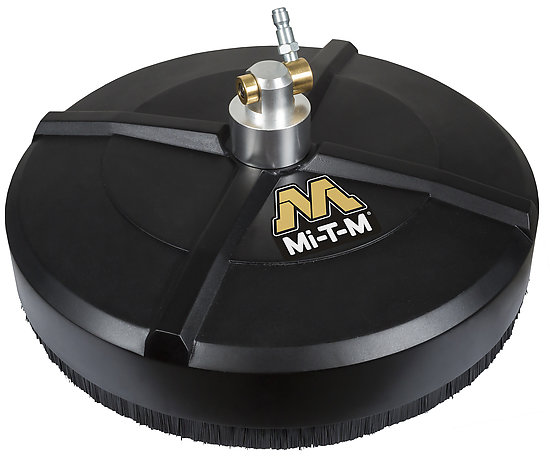

14-Inch Rotary Surface Cleaner - Attachment

16-Inch Hose Reels

Aluminum Extended Reach Wand

18-Foot Aluminum Extended Reach Wand
AW-7017-1800

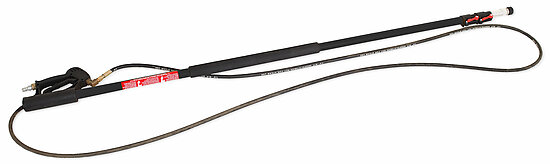

18-Foot Fiberglass Extended Reach Wand
AW-7018-1800

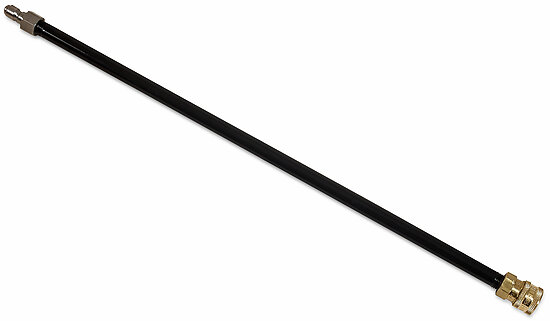

18-Inch Wand Extension
AW-7103-1800

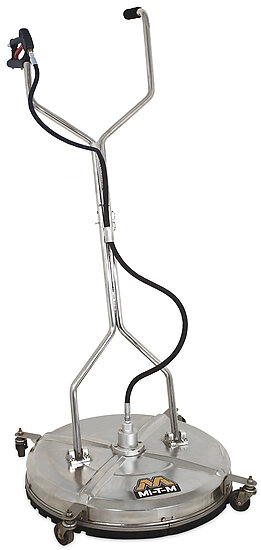

rotary surface cleaners

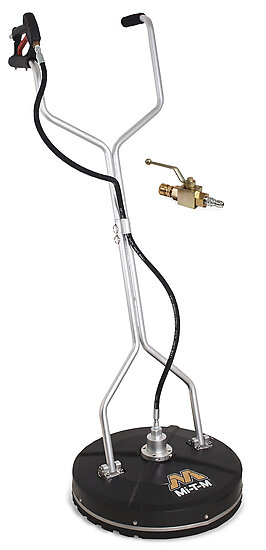

20-Inch Rotary Surface Cleaners - Walk-Behind

24-Foot Fiberglass Extended Reach Wand
AW-7018-2400

24-Inch Rotary Surface Cleaners - Walk-Behind

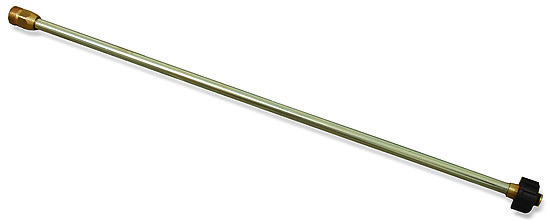

24-Inch Wand Extension
50-0180

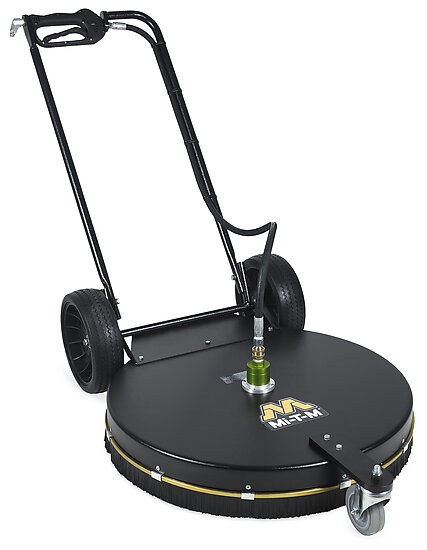

28-Inch Rotary Surface Cleaner - Walk-Behind

36-Inch Aluminum Wand Extension
AW-7105-3600

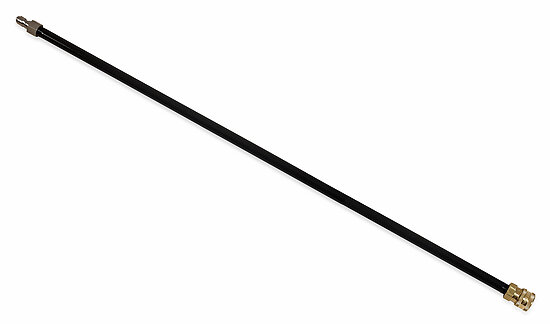

36-Inch Wand Extension
AW-7103-3600

pressure washer wand

48-Inch Aluminum Wand Extension
AW-7105-4800

pressure washer detergent hose

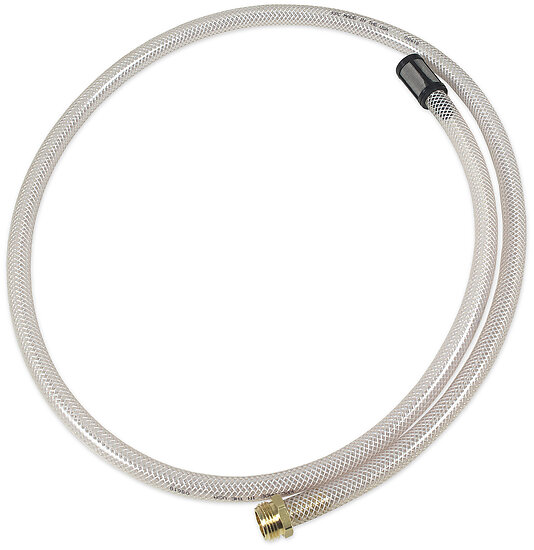

5-Foot Supply Hose
AW-3100-0002

72-Inch Aluminum Wand Extension
AW-7105-7200

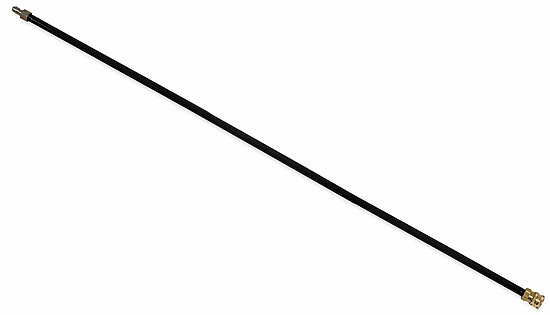

72-Inch Wand Extension
AW-7103-7200

90-Inch Aluminum Wand Extension
AW-7105-9600

pressure washer detergents

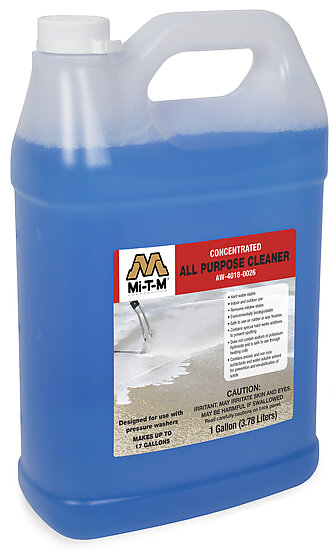

All Purpose Cleaner

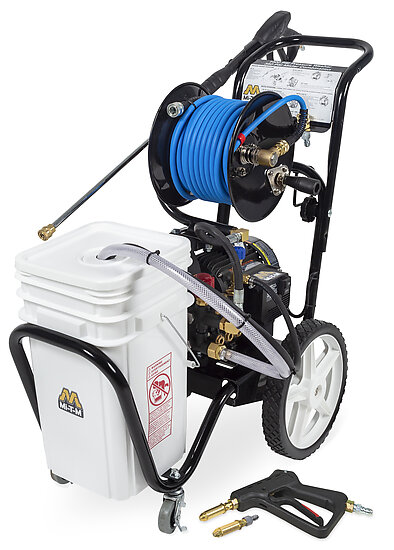

Mi-T-M Mister Combination Bucket Kit

Bucket Kit
851-0435

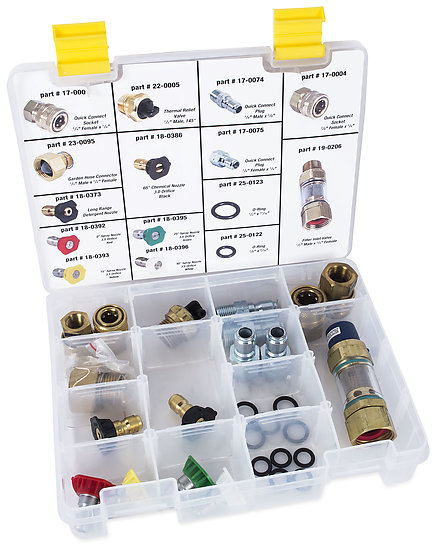

Buddy Box - Pressure Washer Parts Box
AW-1162-0194

Mi-T-M Mister Caster Wheel Kit

Caster Wheel Kit
851-0436

Caster Wheel Kit
AW-5740-0015

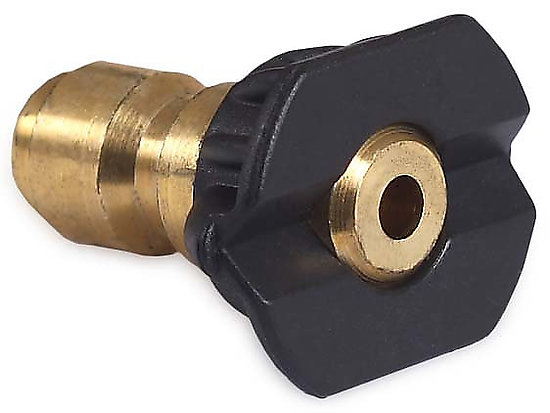

Chemical Nozzles

Cold Water Extension Hoses

pressure washer parts

Cold Water Gun and Wand Assemblies

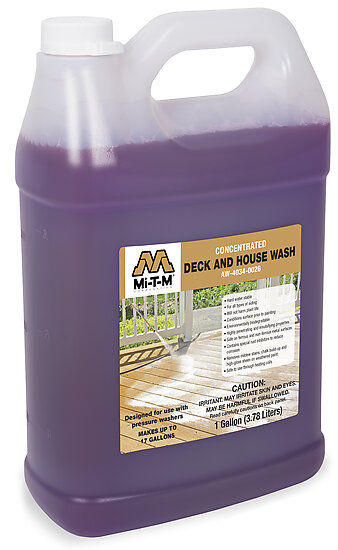

Deck & House Wash

pressure washer detergent foamer

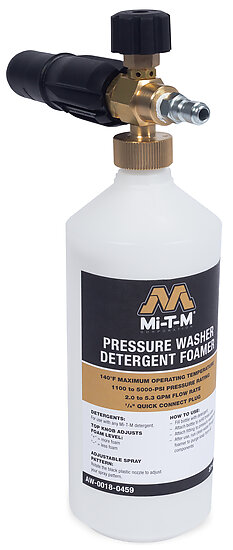

Detergent Foamer
AW-0018-0459

Digital Hour Tachometer

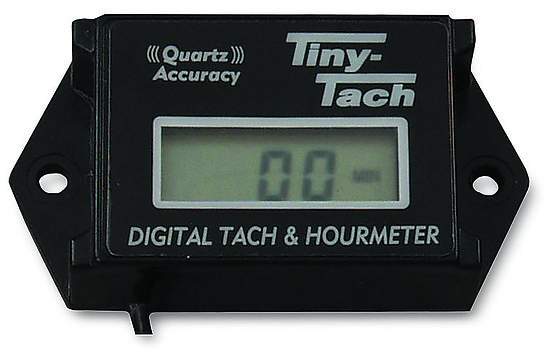

Digital Hour Meter/Tachometer
32-0416

pressure washer accessories

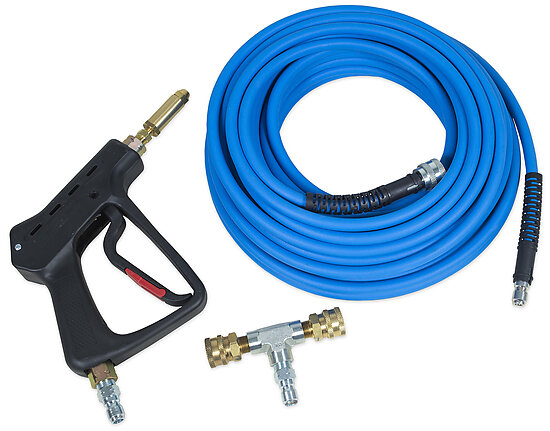

Dual Gun Accessory Kit
AW-3100-0001

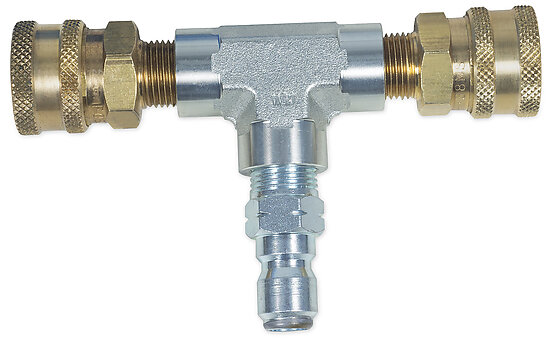

Dual Gun Adapter
851-0431

Dual Unit Kit
852-0208

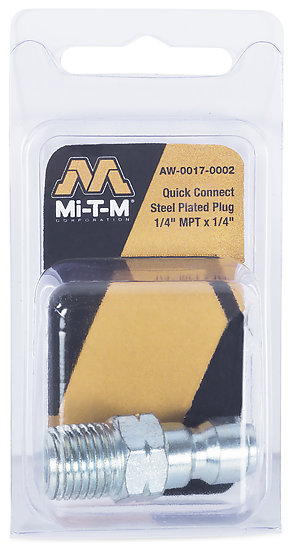

Fittings

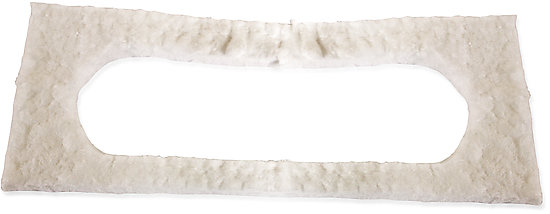

Gasket
850-0324

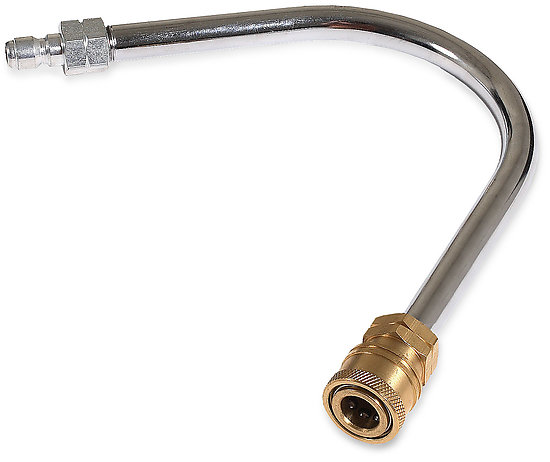

Gutter Cleaner
50-0201

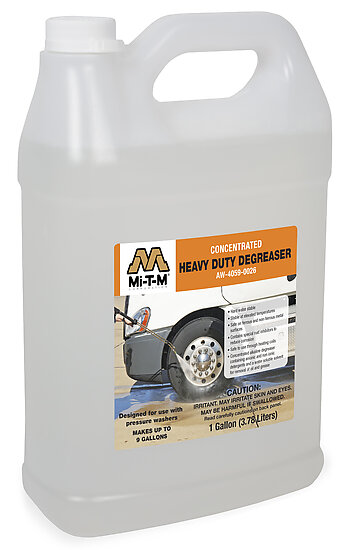

Heavy-Duty Degreaser

Pressure Washer Detergent Injector

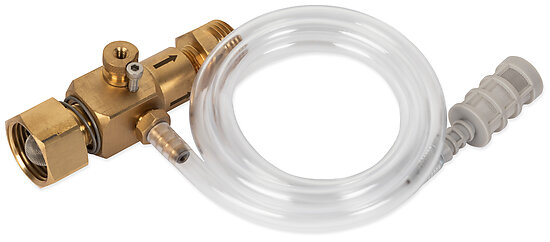

High Pressure Detergent Injector

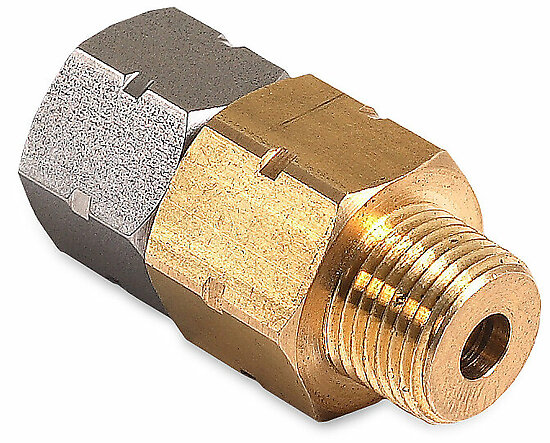

High Pressure Swivel Connector
AW-0023-0507

High Temperature O-Rings

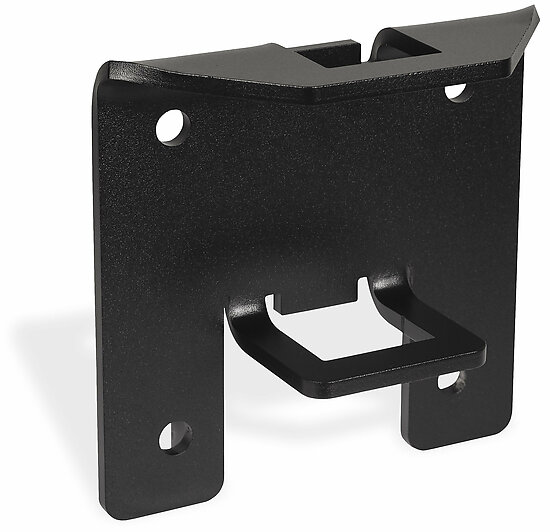

Hose Reel Brackets & Elbow

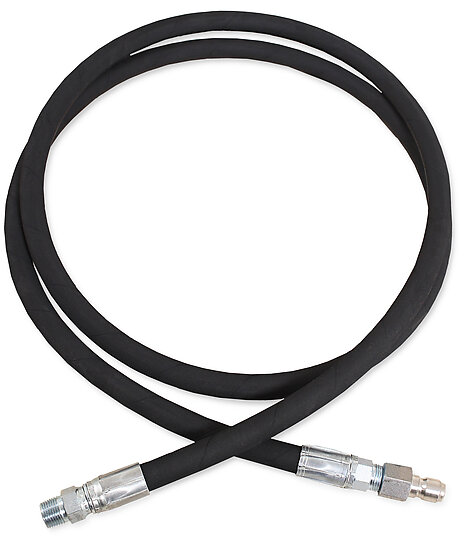

Hose Reel Jumper Hoses

Mi-T-M Mister Hose Reel Kit

Hose Reel Kit
AW-3100-0004

hot water pressure washer parts

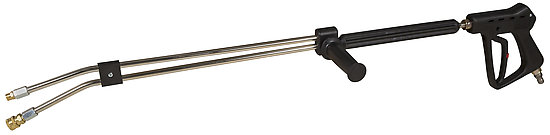

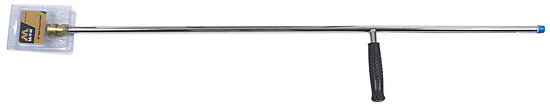

Hot Water Dual Lance Assemblies

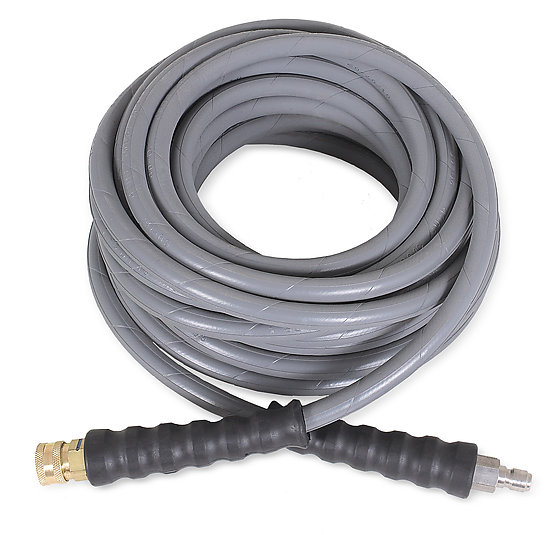

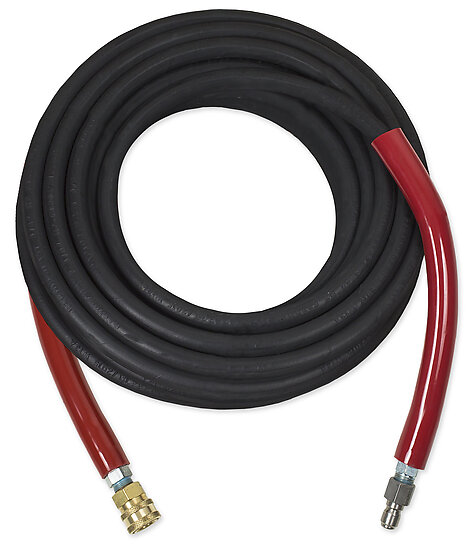

Hot Water Extension Hoses

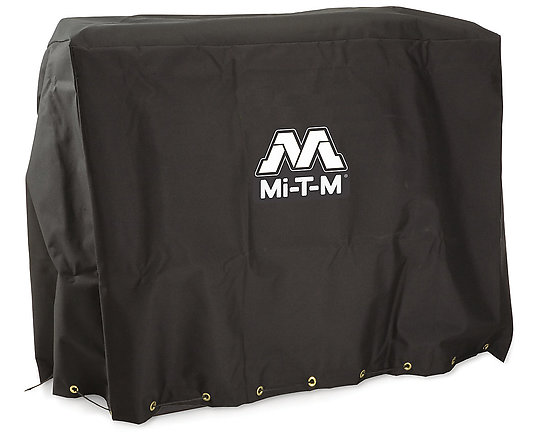

Hot Water Skid Equipment Cover
AW-6000-1006

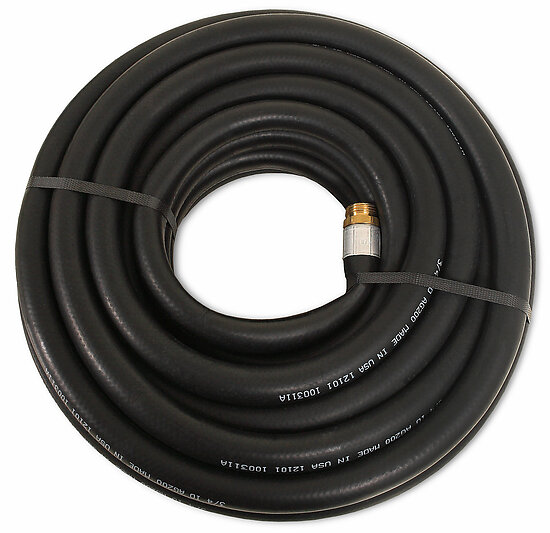

Industrial Water Supply Hose
15-0006

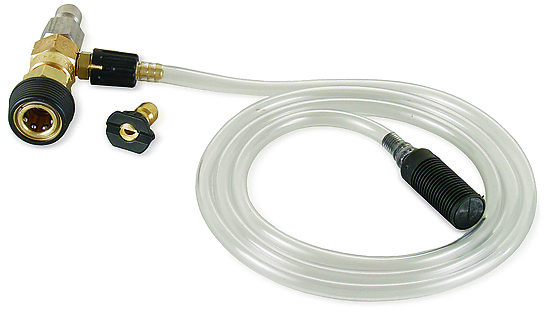

Low Pressure Detergent Injectors

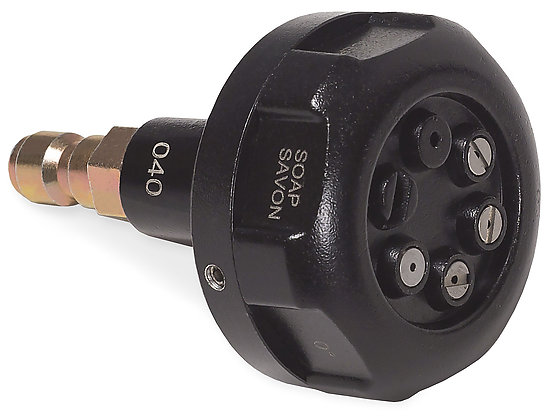

Multi-Function Nozzles

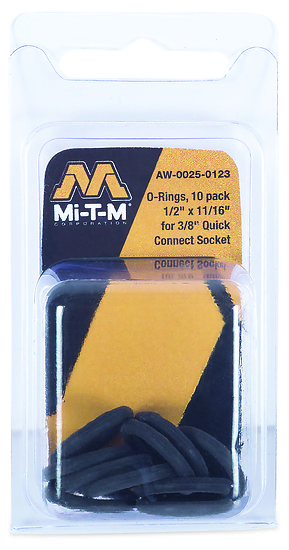

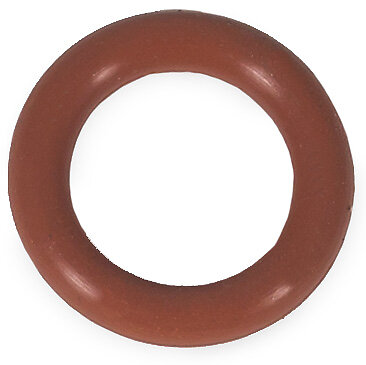

O-rings

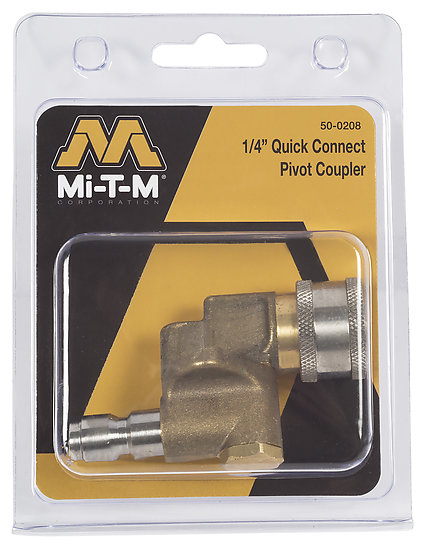

Pivot Coupler
50-0208

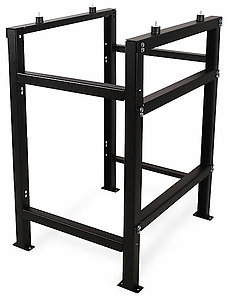

Powder Coated Steel Floor Stand
AW-9502-0001

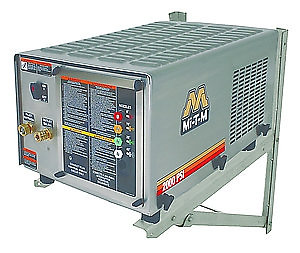

Powder Coated Steel Wall Mounting Bracket; Front-Mount
AW-9502-0000

Powder Coated Steel Wall Mounting Bracket; Side-Mount
AW-9502-0003

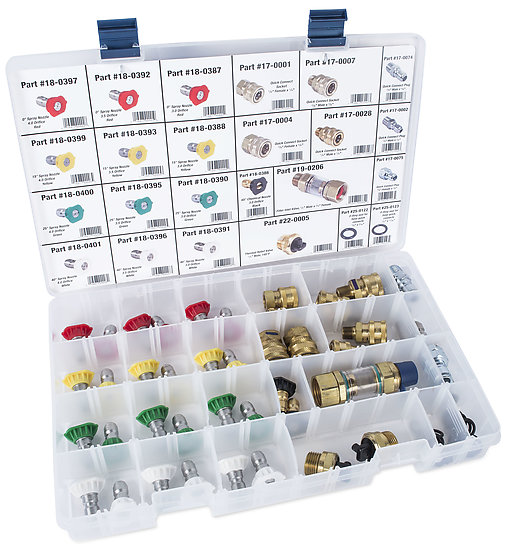

Pressure Washer Replacement Parts Box
AW-1162-0174

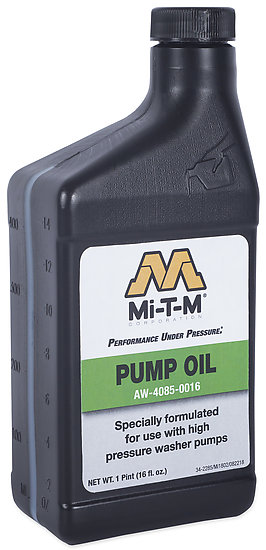

Pump Oil
AW-4085-0016

pressure washer winterizing liquid

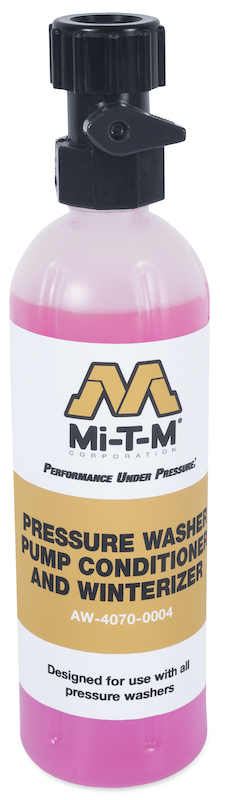

Pump Saver
AW-4070-0004

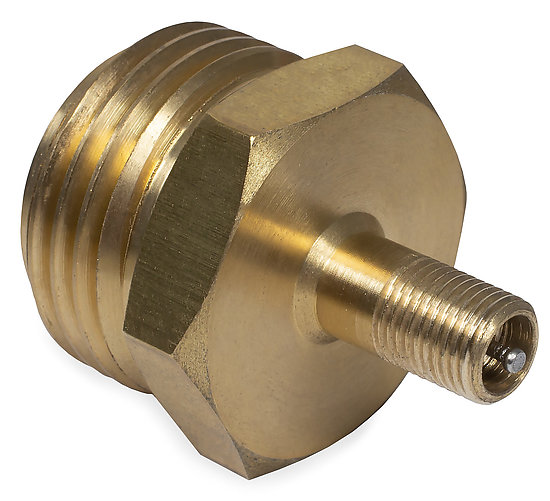

Pump Winterizing Blowout Fitting
AW-4070-0005

pressure washer mister nozzle

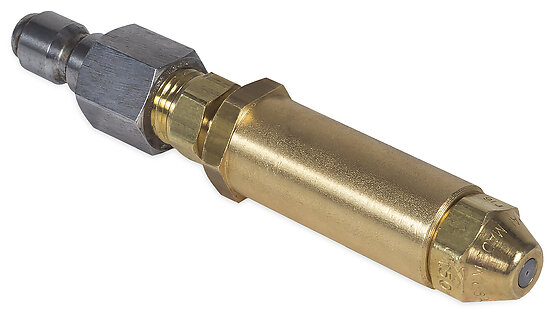

Quick Connect Misting Nozzle
AW-3100-0003

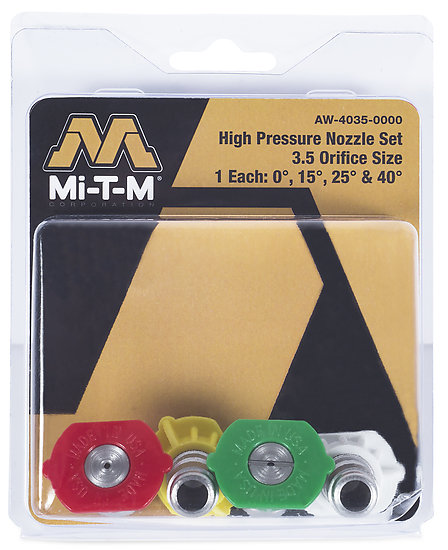

Quick Connect Nozzles

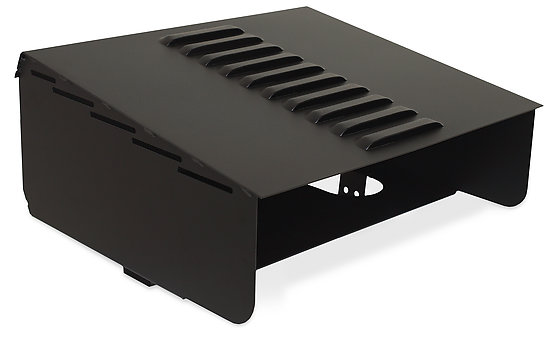

Rain Cap
20-0464A52

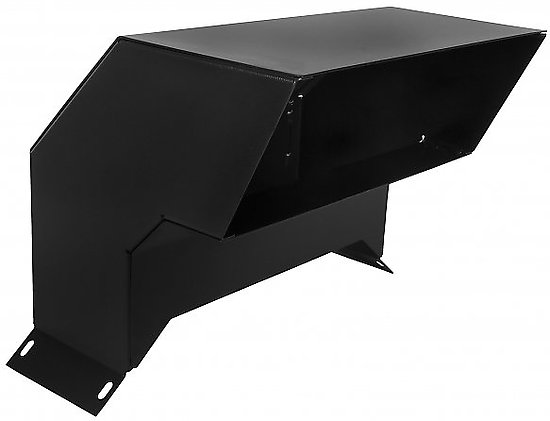

Rain Cap
20-1366A52

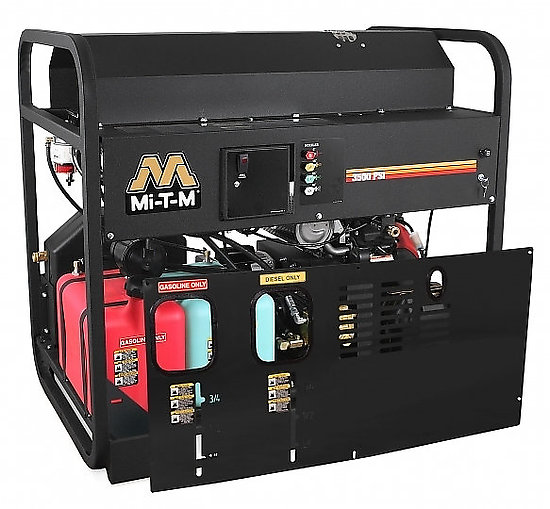

Removable Painted Front Panel
20-1070A18

Replacement Gun and Wand

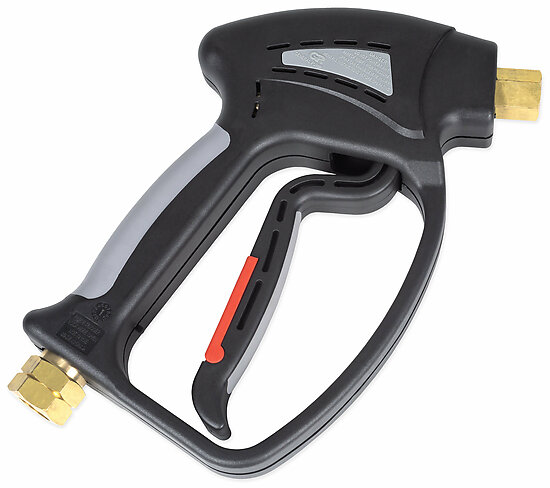

Replacement Trigger Gun
16-0446

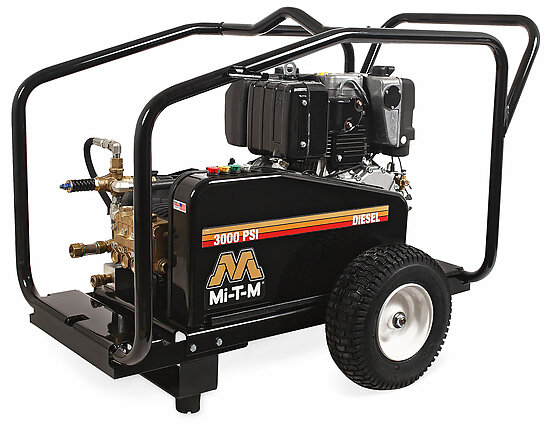

Roll Cages

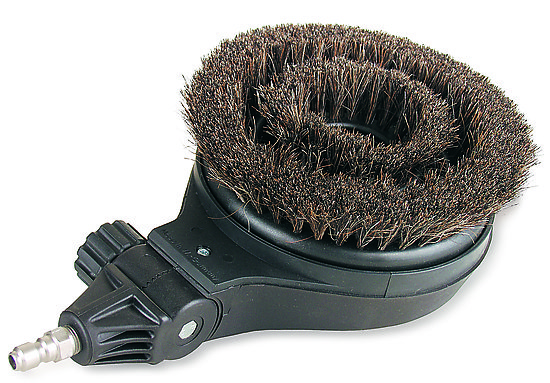

Rotating Brush
AW-7003-1500

rotating nozzles

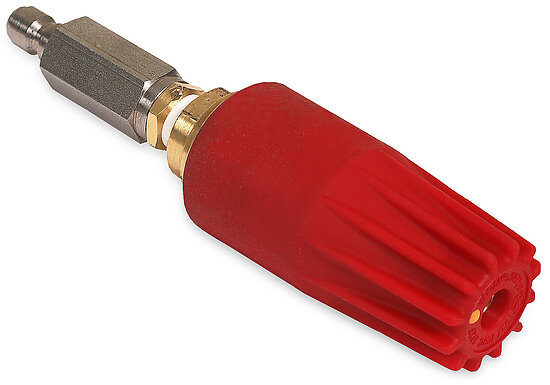

Rotating Nozzles

pressure washer sand injector

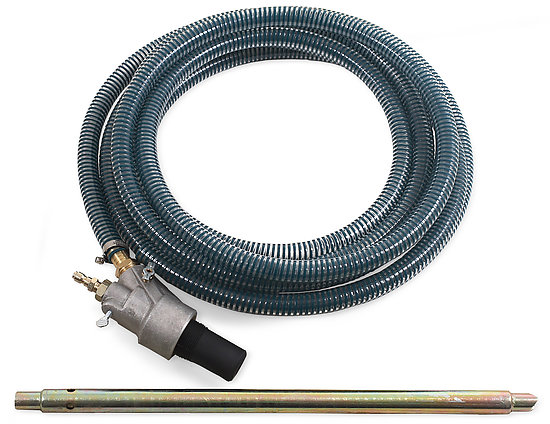

Sand Injector

pressure washer shut off ball valve

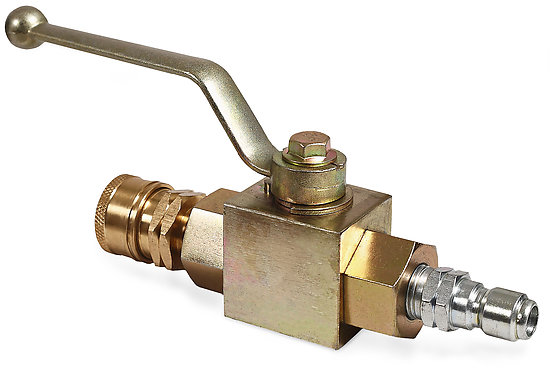

Shut-Off Ball Valve
50-0210

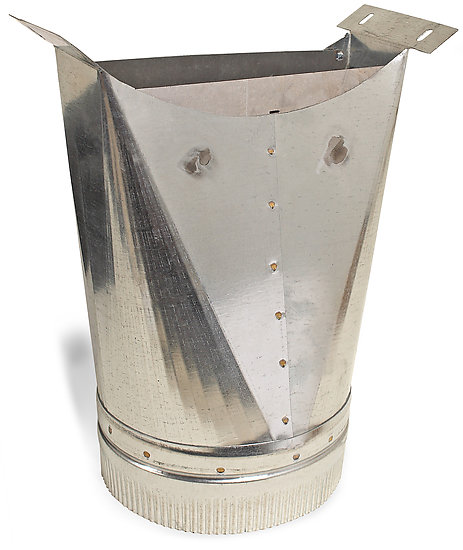

Stack Adapter
50-0177

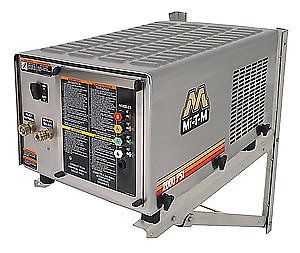

Stainless-Steel Wall Mounting Bracket
AW-9501-0000

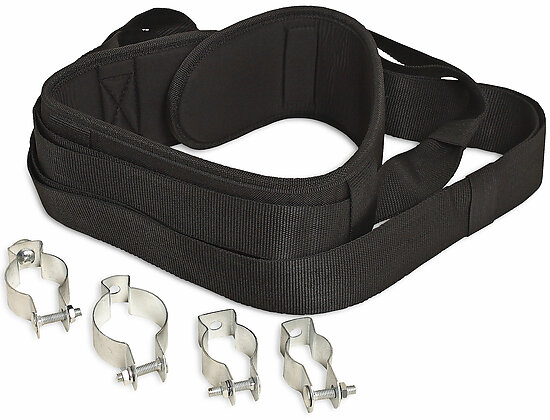

Telescoping Wand Belt
AW-7015-0001

pressure washer mister gun

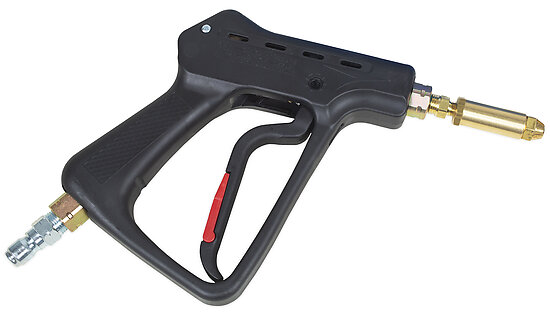

Trigger Gun with Misting Nozzle
851-0432

pressure washer Water Broom

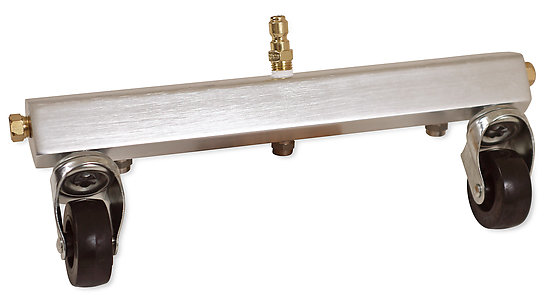

Water Broom
