JP Series Gasoline Direct Drive - JP-4004-3MHB

Resources

Find A Local Dealer

Get Started

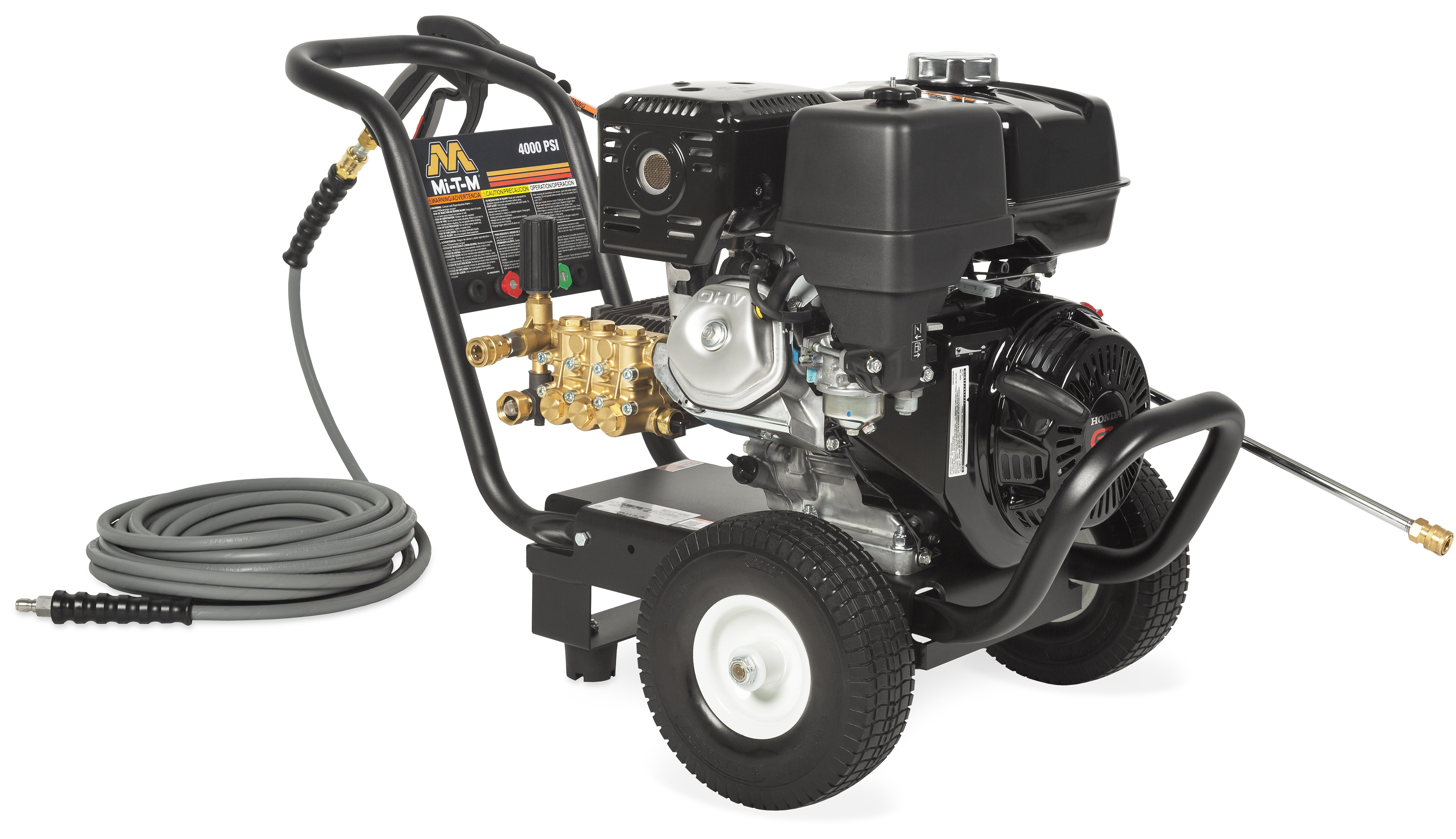

JP-4004-3MHB

This powerful JP Series pressure washer is excellent for blasting away mud and muck from equipment and buildings.

Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · In-line water strainer

Frame
Powder coated steel frame · 10-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15° and 25° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
ETL Certified – US.

Specifications

  • PSI

    4000

  • GPM

    3.5

  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Pump

    AR

  • Unloader

    Mi-T-M, Adjustable Pressure

  • Lance

    48 in.

Weights & Dimensions

  • Net Weight

    142.00 lbs.

  • Shipping Weight

    192.00 lbs.

  • Length

    40.00 in.

  • Width

    22.50 in.

  • Height

    24.50 in.

Options - must be ordered with unit and cannot be added later.

  • CX-0084 External Bypass System

    Allows more water into the system to protect from heat build-up

Warranty Information
  • 1 Year Mi-T-M Unloader
  • 3 Year Honda Engine
  • 7 Year AR Pump
