HAE Series All-Electric Belt Drive - HAE-2503-0E4G

Get Started

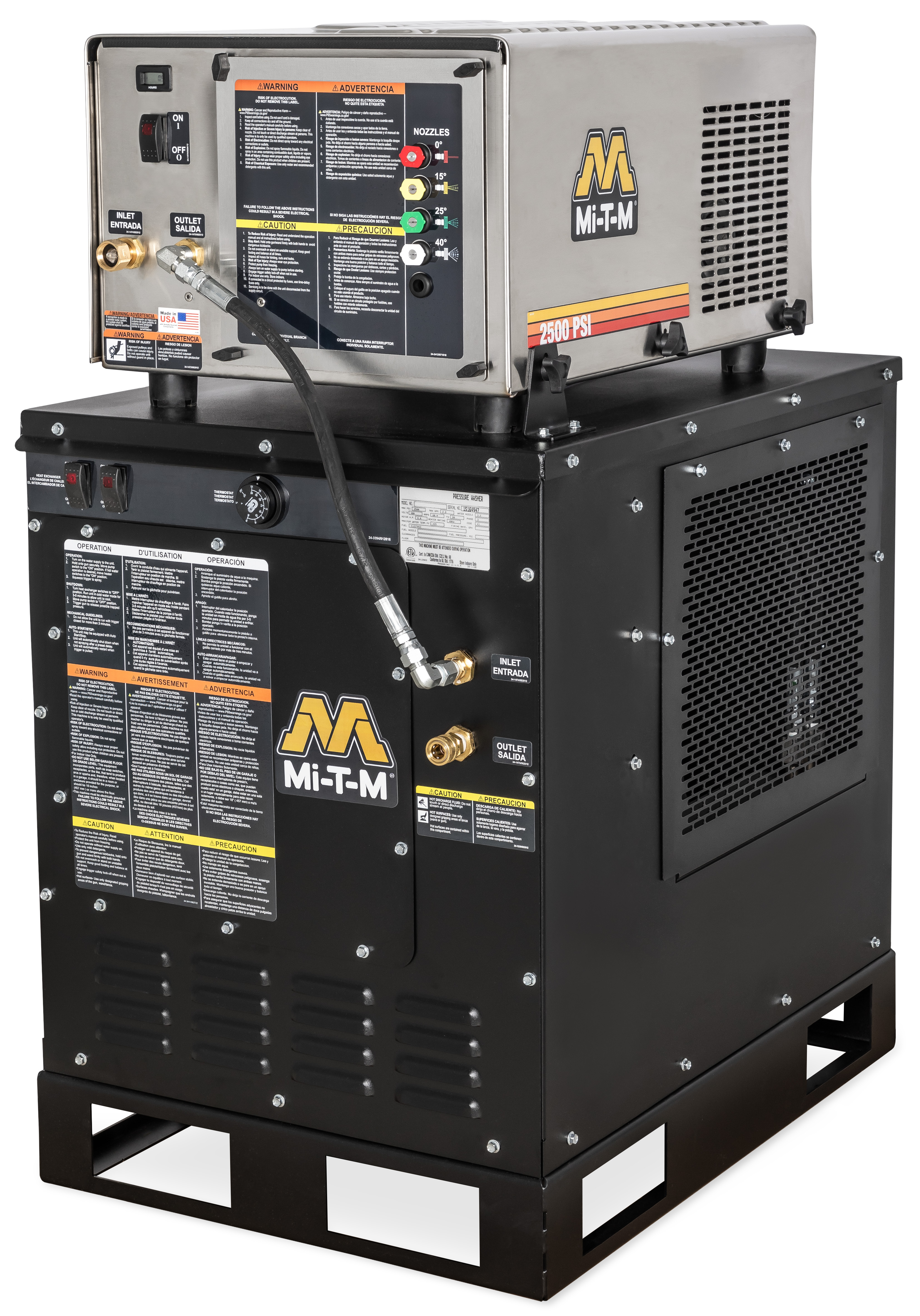

HAE-2503-0E4G

This HAE Series pressure washer is all-electric and features a patented heat exchanger design to provide consistent and efficient hot water output.

Pump
Factory preset unloader · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Motor
Open drip-proof electric motor with manual thermal overload protection · On/off power switch

Frame
Stainless-steel base and frame with rubber isolators

Component
Time delay shutdown

Heat Exchanger
Used for consistent and efficient on-demand hot water · 120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes · Adjustable thermostat · On/off power switch · Powder coated steel frame · Patented cartridge design · Low maintenance, stainless-steel coils in aluminum casings for maximum efficiency · Eliminates constant cleaning and heat loss

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · External downstream detergent injector with detergent nozzle · 50-foot x 3/8-inch wire-braided black hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

PSI

2500
GPM

2.8
Horsepower/Motor

6.0 HP, 480V, 3Ø
Unit Amperage

68.0A
Pump

General
Heater kW

48
Temperature Rise

120°F

Weights & Dimensions

Net Weight

625.00 lbs.
Shipping Weight

725.00 lbs.
Length

36.00 in.
Width

25.00 in.
Height

49.00 in.

Options - must be ordered with unit and cannot be added later.

HX-0298 Remote Box

Adds control box, may be mounted away from unit to control on/off, controls the hot water heater and cold water pump
HX-0307 Auto Start/Stop

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart

Videos

Links / Blog Articles

Warranty Information

1 Year Electric Motor
7 Year General Pump
