HSE Series Electric Direct Drive - HSE-1502-0MG10

Get Started

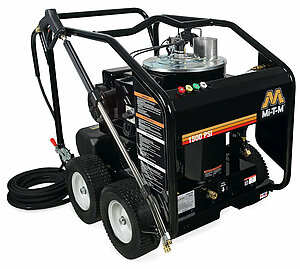

HSE-1502-0MG10

The HSE Series is designed with a powder coated steel frame, making it extremely durable. It is ideal for cleaning on construction sites, farms, mining and oil fields.

Pump
Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

PSI

1500
GPM

2.0
Horsepower/Motor

2.0 HP, 120V, 1Ã˜, 19.0A
Pump

General
Plug Type

NEMA 5-20P
Burner Fuel Tank Capacity

4.0 gallon
Burner Fuel Cons.

1.21 gph
BTU Per Hour

169,000

Weights & Dimensions

Net Weight

299.00 lbs.
Shipping Weight

422.00 lbs.
Length

43.00 in.
Width

29.50 in.
Height

36.50 in.

Options - must be ordered with unit and cannot be added later.

HX-0235 Hour Meter

Displays the number of hours unit has been in operation
HX-0246 300°F Steam

Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
HX-0308 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86°-248°F

Videos

Links / Blog Articles

Warranty Information

1 Year Electric Motor
3 Year Coil
7 Year General Pump

Additional Info

Chat With An Expert

Find A Service Center
