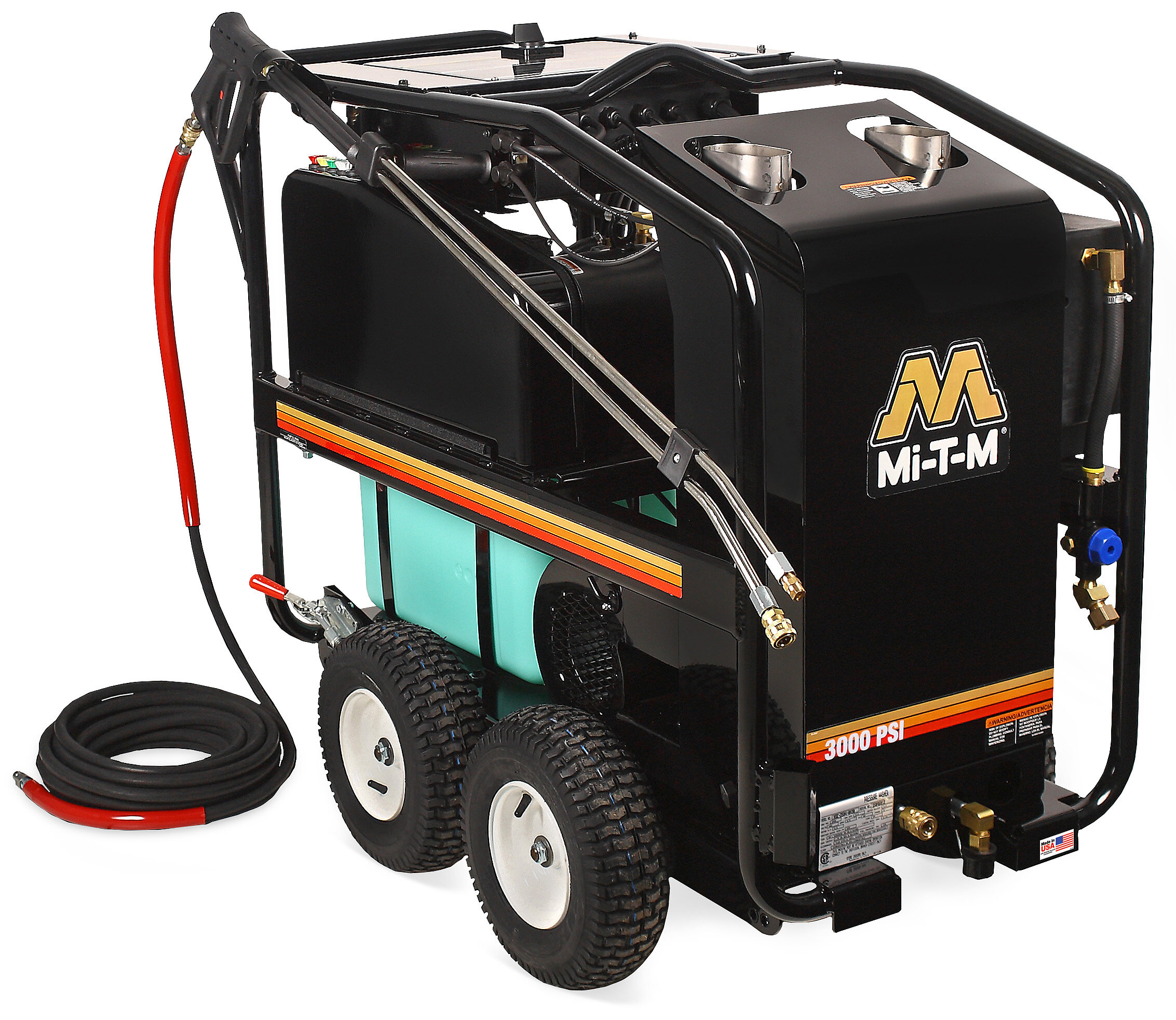

HSE Series Electric Belt Drive - HSE-3004-0M30

Get Started

HSE-3004-0M30

Contractors rely on the HSE Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

PSI

3000
GPM

3.5
Horsepower/Motor

8.0 HP, 230-460V, 3Ã˜, 24.0A
Pump

General
Plug Type

NEMA L15-30P
Burner Fuel Tank Capacity

10.0 gallon
Burner Fuel Cons.

2.10 gph
BTU Per Hour

294,000

Weights & Dimensions

Net Weight

602.00 lbs.
Shipping Weight

732.00 lbs.
Length

49.50 in.
Width

28.00 in.
Height

40.50 in.

Options - must be ordered with unit and cannot be added later.

HX-0070 Auto Start/Stop

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
HX-0072 Auto Start/Stop - Steam

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
HX-0074 Auto Start/Stop - CAD Cell

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
HX-0076 Auto Start/Stop - Steam - CAD Cell

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
HX-0086 460V on 8.0 HP, 3 Phase Models

Upgrades 230V, 3-phase models to operate at 460V, 3-phase
HX-0088 Skid Feet

Stationary applications
HX-0161 Hour Meter

Displays the number of hours unit has been in operation
HX-0294 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86°-248°F
