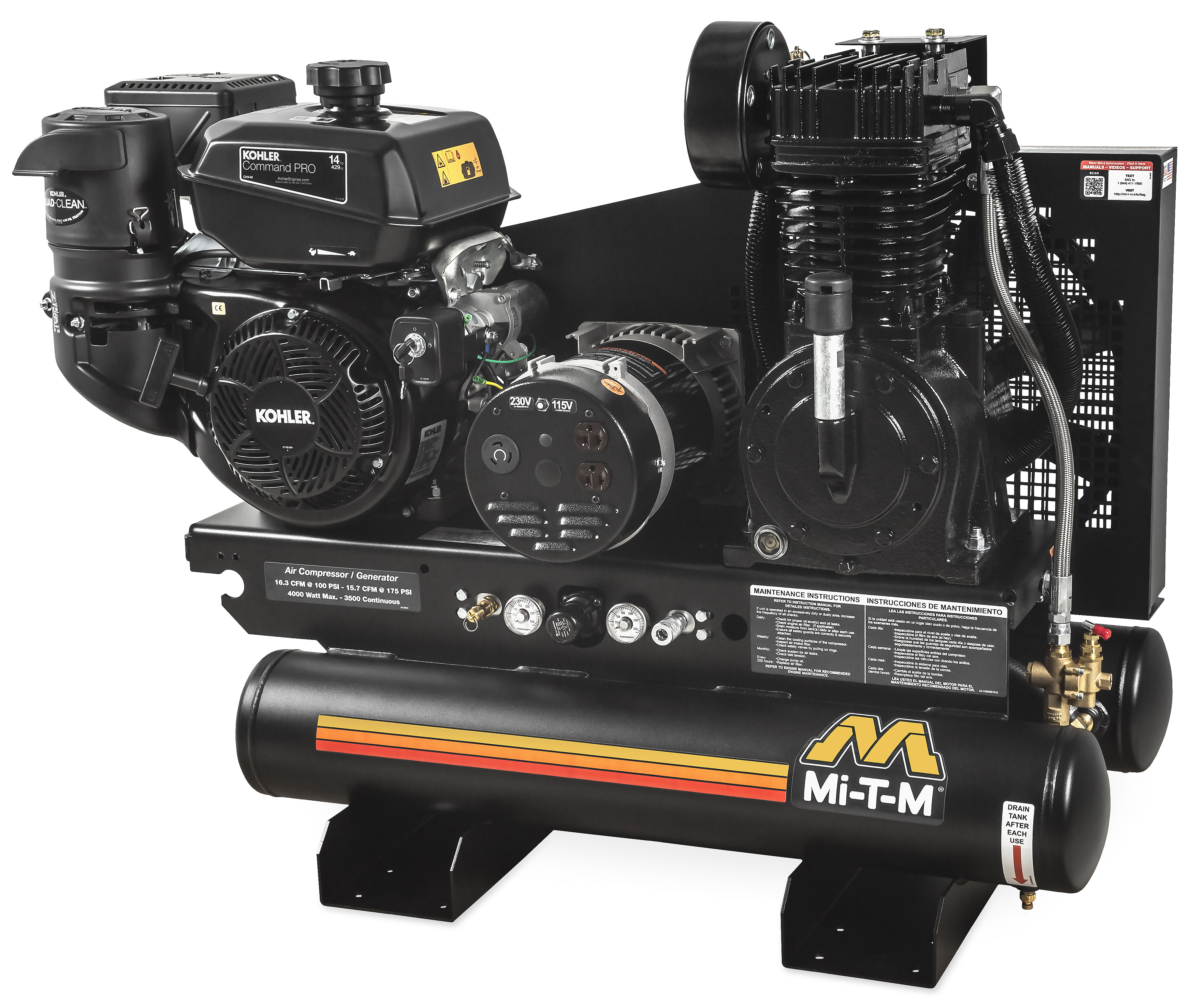

8-Gallon Two Stage Gasoline Combination - AG2-SK14-08M1
AG2-SK14-08M1
Choose this gasoline air compressor and generator combination for unmatched performance, supplying air power and electricity to any jobsite.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles
Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Equipped with 150-PSI maximum rated regulator.
Specifications
-

CFM @ PSI
16.4 @ 90
 -

CFM @ PSI
15.7 @ 175
 -

Alternator Wattage: Max. Output
4000 watts
 -

Alternator Wattage: Cont. with Comp. On-Load
2300 watts
 -

Alternator Wattage: Cont. with Comp. Off-Load
3500 watts
 -

Displacement/ Engine
429cc Kohler CH440 OHV

Weights & Dimensions
-

Net Weight
365.00 lbs.
 -

Shipping Weight
465.00 lbs.
 -

Length
44.00 in.
 -

Width
22.00 in.
 -

Height
34.00 in.

Options - must be ordered with unit and cannot be added later.
-

AX-0028 Lifting Hook
For easier portability

Warranty Information
- 2 Year Alternator
 - 2 Year Pump Exchange
 - 3 Year Kohler Engine
