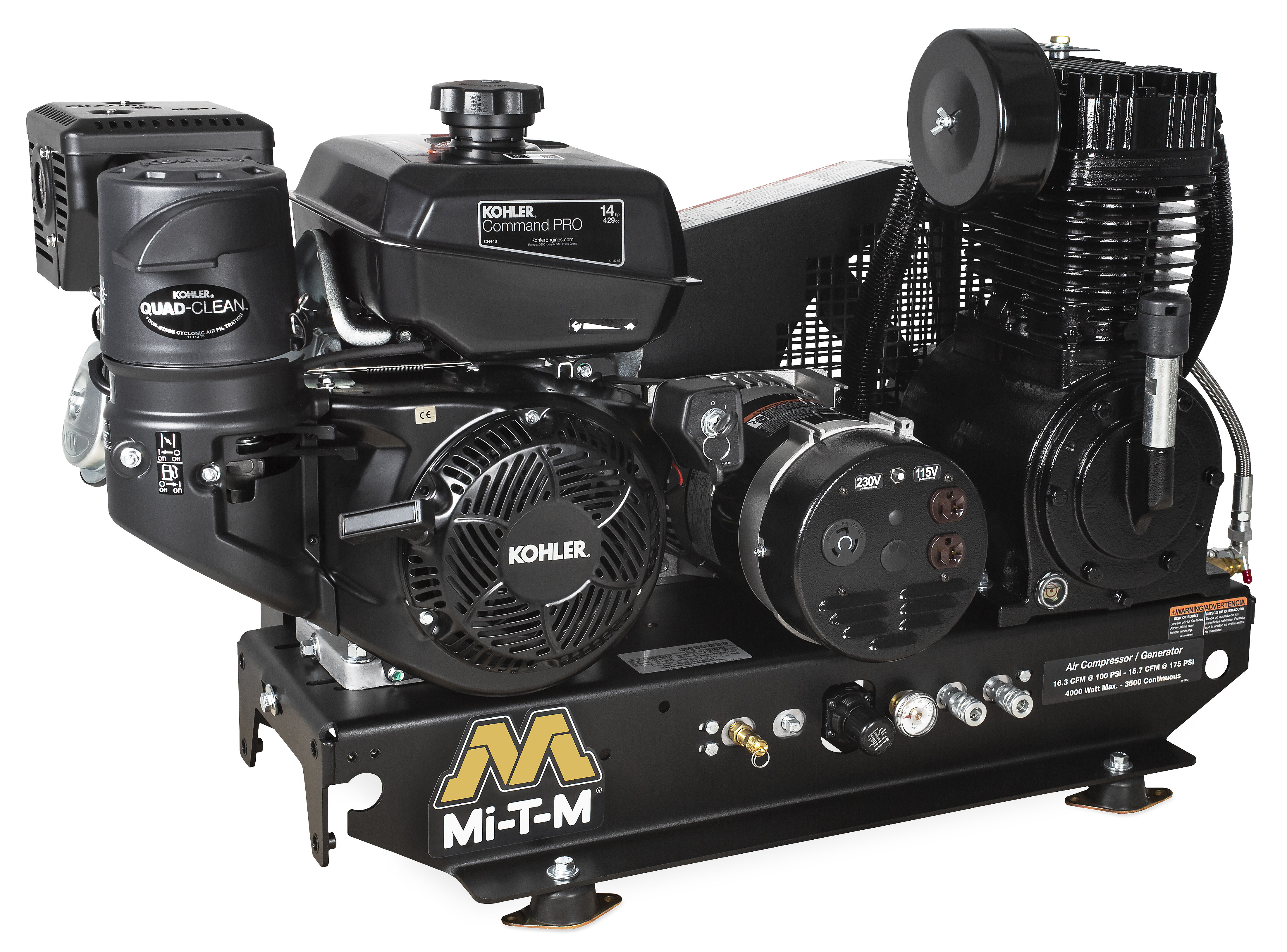

Base-Mount Two Stage Gasoline Combination - AG2-SK14-B

Limited Warranties:
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine

Download Catalog »

View Product Sheet »

AG2-SK14-B

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Find a Dealer »

Specifications

  • CFM @ 90 PSI

    16.4

  • CFM @ 175 PSI*

    15.7

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Displacement/ Engine

    429cc Kohler CH440 OHV

Weights & Dimensions

  • Net Weight

    325.00 lbs.

  • Shipping Weight

    390.00 lbs.

  • Length

    47.00 in.

  • Width

    22.00 in.

  • Height

    28.00 in.

Options

  • AX-0063 Lifting Hook

    For easier portability
